> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Traction Clutch Assy.

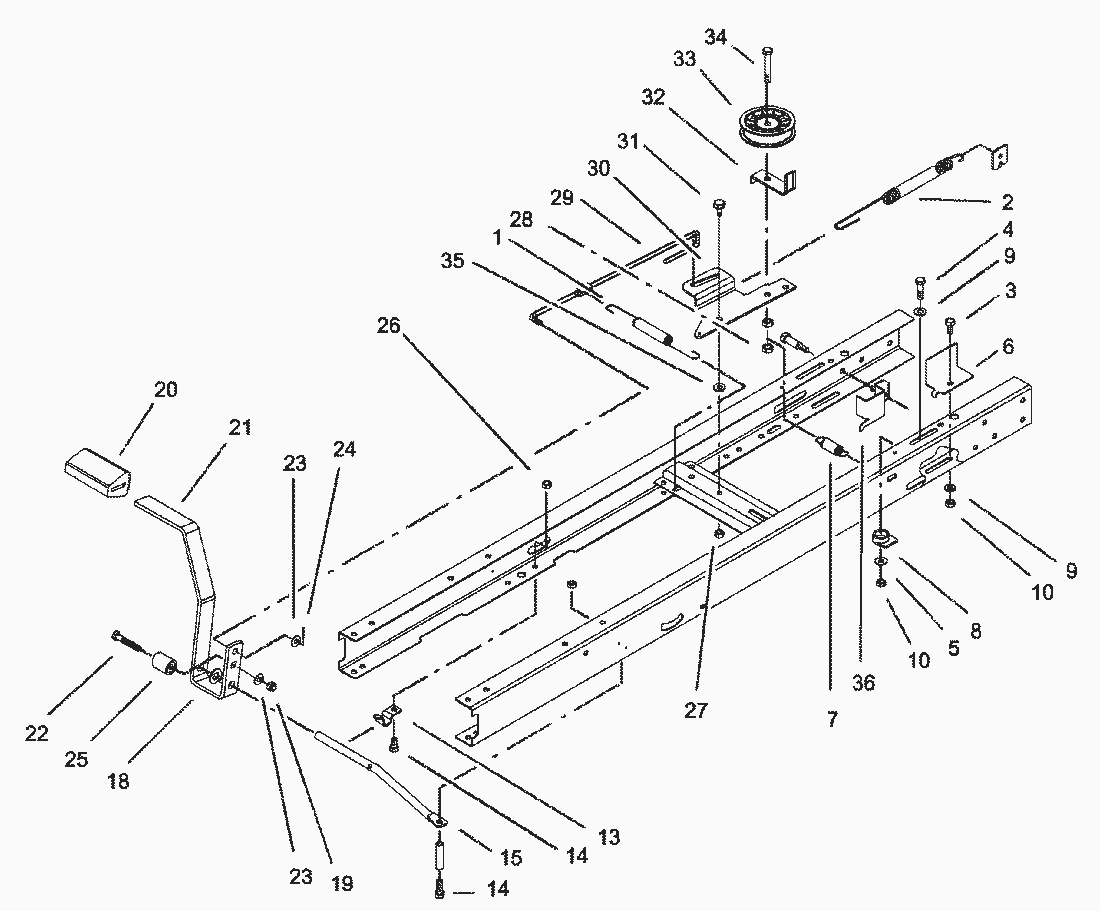

Lista de repuestos para Toro Roth / TORO Traction Clutch Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Spring-Return27-8890
2Spring-Brake94-4294
3Capscrew322-3
4Capscrew322-6
5Washer5-4460
6Bracket-Belt Guide94-5433
7Spring-Extension88-6330
8Guide-Cable84-5610
9Washer3256-23
10MUTTER3296-29
13Clamp-Shift Pivot88-4810
14Capscrew322-3
15Rod-Pedal Pivot88-5500
18Washer3256-26
19Nut-Lock3296-47
20Pad-Pedal65-2920
21Pedal-Clutch/Brake88-5000-03
22Capscrew322-9
23Washer3256-23
24Pin-Cotter3272-10
25Spacer-Switch99-6836
26MUTTER3296-29
27MUTTER3296-29
28Nut-Lock3296-59
29Rod-Clutch/Brake88-5270
30Arm-Idler88-6070
31Shoulder Bolt37-8770
32Guide-Idler Belt88-5560
33Pulley-Idler104-4160
34Capscrew323-10
35Washer5-4460
36Bracket-Belt Guide94-4926
