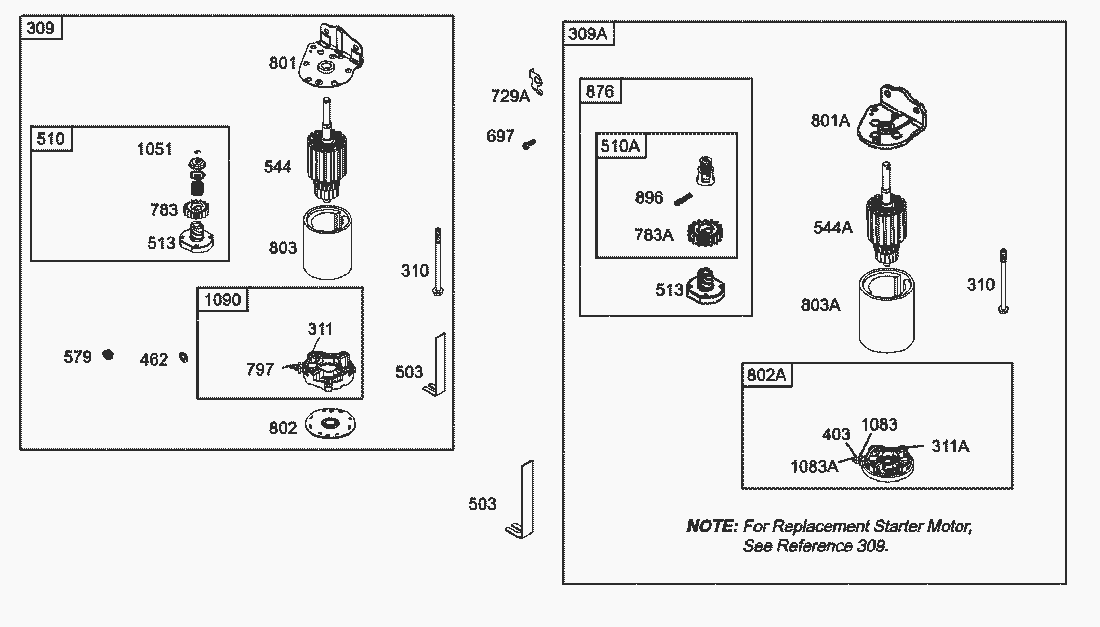

Lista de repuestos para Toro Roth / TORO Starter Assy. Engine B&S Model 286H77-0121-E1

pos.	descripción	Número de pieza
309	Motor-Starter	693551
309
310	Bolt (Starter Motor)	690323
311	Brush Set	497608
311	Brush Assembly	395538
403	Washer (End Cap)	690288
462	Washer (Brush Retainer)	691261
503	Strap-Starter	691532
510	Drive-Starter	693699
510	Starter Drive Assy.	495878
513	Drive Clutch	692024
544	Armature-Starter	692034
544	Armature Assembly	390837
579	Nut (Brush Retainer)	691029
697	Screw (Starter Motor Mounting)	690372
729	Clip-Wire	691224
783	Starter-Pinion (Steel)	693713
783	Gear-Pinion	693059
797	Nut (Starter Terminal)	693167
801	Cap-Drive	691283
801	Cap-Drive	691429
802	Cap-End	691286
802	End Cap Assy. Commutator	395537
803	Housing-Starter	693757
803	Housing Assembly	398159
876	Retainer And Pin	495877
896	Pin-Drive Retainer	691641
1051	Ring-Retaining	691265
1090	Retainer-Brush	691293
1083	Nut (Carburetor)	690958
1083	Nut (End Cap)	691626
