> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Cylinder Head Assy. Engine B&S Model 286H77-0121-E1

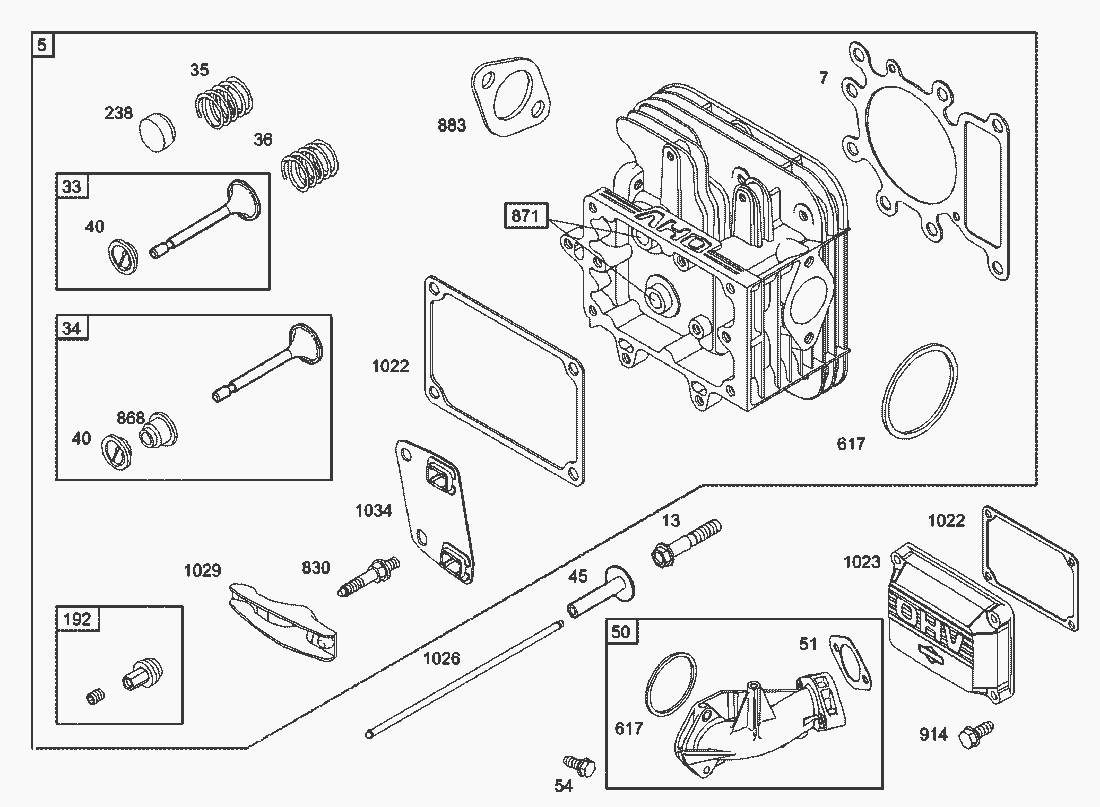

Lista de repuestos para Toro Roth / TORO Cylinder Head Assy. Engine B&S Model 286H77-0121-E1




Lista de repuestos


pos.descripciónNúmero de pieza
5Head-Cylinder691165
7Gasket-Cylinder Head273280
13Screw-Hex.690360
33Valve-Exhaust495856
34Valve-lntake495857
35Spring-Valve (Intake)691279
36Spring-Valve (Intake)691279
40Retainer-Valve691752
45Tappet-Valve690564
50Manifold-Intake690193
51Gasket-Intake692137
54Screw (Intake Manifold)691148
192Adjustor-Rocker Arm691986
238Cap-Valve691843
617Gasket-Intake692138
830Stud-Rocker Arm691095
868Seal-Valve690968
871Bushing-Valve Guide690969
883Gasket-Exhaust692236
914Screw-Hex. Head690960
1022Gasket-Rocker Cover272475
1023Cover-Rocker692492
1026Rod-Push (Intake)692003
Rod-Push (Exhaust)692011
1029Arm-Rocker691751
1034Guide-Push Rod690822
