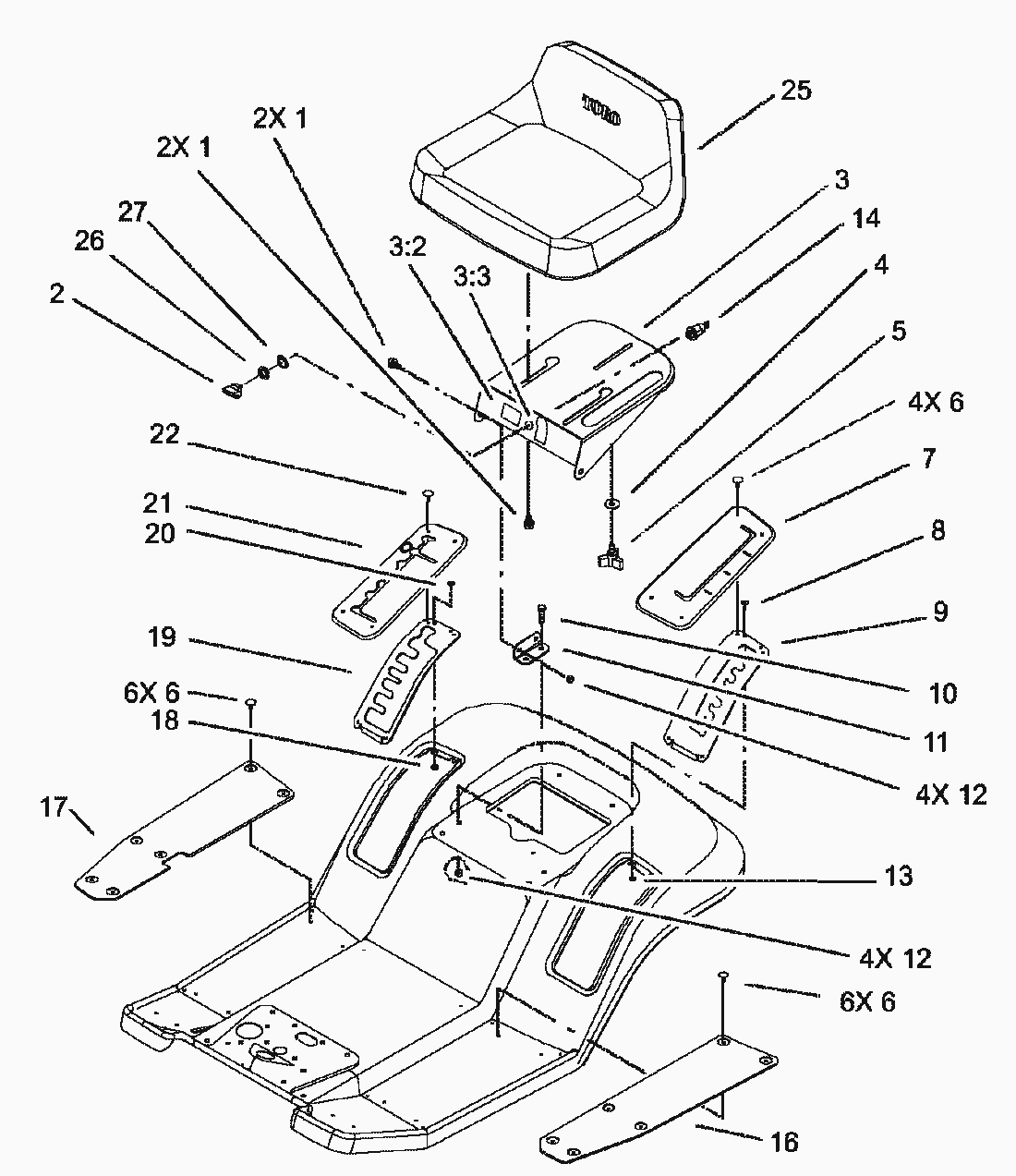

Lista de repuestos para Toro Roth / TORO Rear Body and Seat Assy.

pos.	descripción	Número de pieza
1	Shoulder Bolt	37-8770
2	Key-Ignition	63-8360
3	Support ASM-Seat	99-5831
3	Support ASM-Seat (Only On: 71198)	99-5830
32	Decal-Danger (Only On: 72048)	99-2985
32	Decal-Danger Intl (Only On: 72070)	99-2986
33	Decal-Nmir Switch Intl (Only On: 72070)	99-5340
33	Decal-Nmir Switch (Only On: 72048)	99-5339
4	Washer	5-4460
5	Knob-Studded	92-9674
6	Fastener-Panel	3290-479
7	Cover-H.O.C.(Model No. 71200 Only)	93-7657
7	Cover-H.O.C.	88-5170
8	Rivet-Pop	3290-282
9	Gate-HOC	88-5030-03
10	Capscrew	322-3
11	Bracket-Seat Hinge	88-4820-03
12	MUTTER	3296-29
13	Washer-Backup	3269-26
14	Switch-Starter (Incl. Ref.	46-5780
141	Lockwasher	3254-5
142	Hex Nut	218-461
16	Mat-L.H. Foot	88-5240
17	Mat-R.H. Foot	88-5220
18	Washer-Backup	3269-26
19	Plate-Shift Gate	88-5020-03
20	Rivet-Pop	3290-282
21	Cover-Shift Gate (Model No. 71200 Only)	93-7656
21	Cover-Shift Gate	88-5160
22	Fastener-Panel	3290-479
25	Seat (Model No. 71200 Only)	88-3950
26	Hex Nut	218-461
27	Lockwasher	3254-5
