> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Blower Housing Assy. Engine B&S Model 286H77-0121-E1

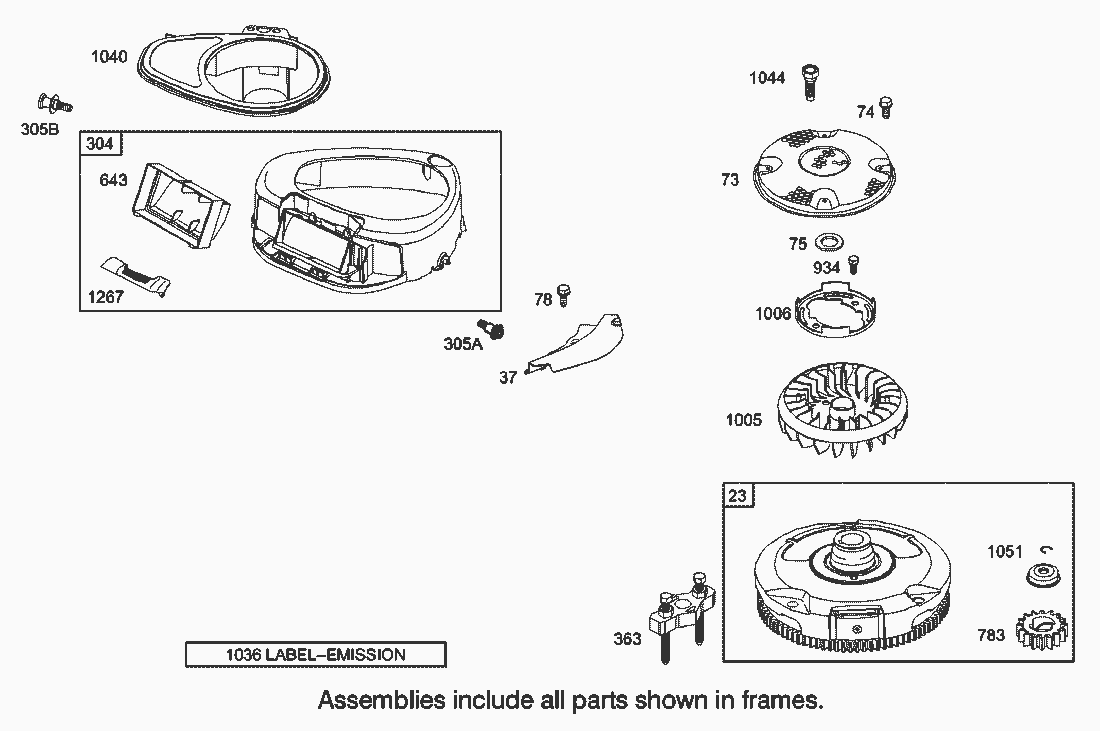

Lista de repuestos para Toro Roth / TORO Blower Housing Assy. Engine B&S Model 286H77-0121-E1




Lista de repuestos


pos.descripciónNúmero de pieza
23Flywheel693557
37Guard-Flywheel697108
73Screen-Rotating697133
74Screw (Muffler Deflector)690661
75Washer (Flywheel)690582
78Screw (Muffler Deflector)690661
304Housing-Blower697137
305Screw (Blower Housing)697102
305Screw (Blower Housing)697103
363Puller-Flywheel(Optional Accessory)19203
643Retainer-Air Filter697155
783Starter-Pinion (Steel)693713
934Screw (Fan Retainer)691058
1005Fan-Flywheel697111
1006Retainer-Fan690452
1036Label-Emission695700
1040Plate-Trim697142
1044Screw (Crankshaft Extension)691658
1051Ring-Retaining691265
1267Latch-Blower Housing697135
