volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
16-38 XLE
>
358/71226
>
220010001
>

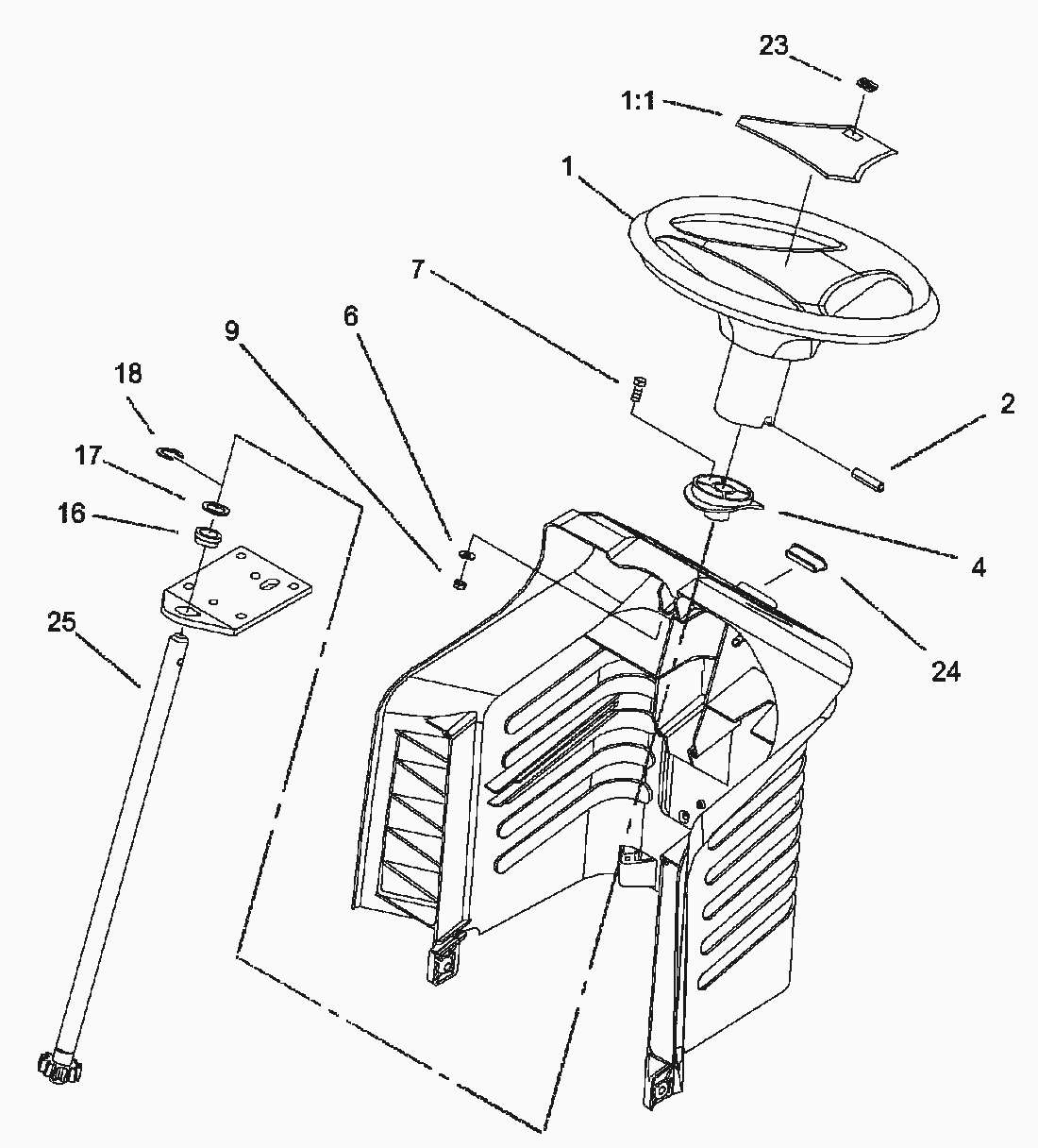

Fixed Steering Assy.
Lista de repuestos para Toro Roth / TORO Fixed Steering Assy.
pos.
descripción
Número de pieza
1
Steering Wheel ASM 14
98-1467
11
Cover-Wheel
98-1468
2
Pin-Spirol
32121-111
4
Bushing-Sliding
88-4190
6
Washer
3256-22
7
Capscrew
321-4
9
MUTTER
3296-42
16
Bushing-Flange
88-5150
17
Washer-Thrust
3-6498
18
E-Ring-External
32151-48
23
Decal
98-1459
24
Plug
88-4150
25
Shaft-Steering
88-6380
