> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Engine Assy.

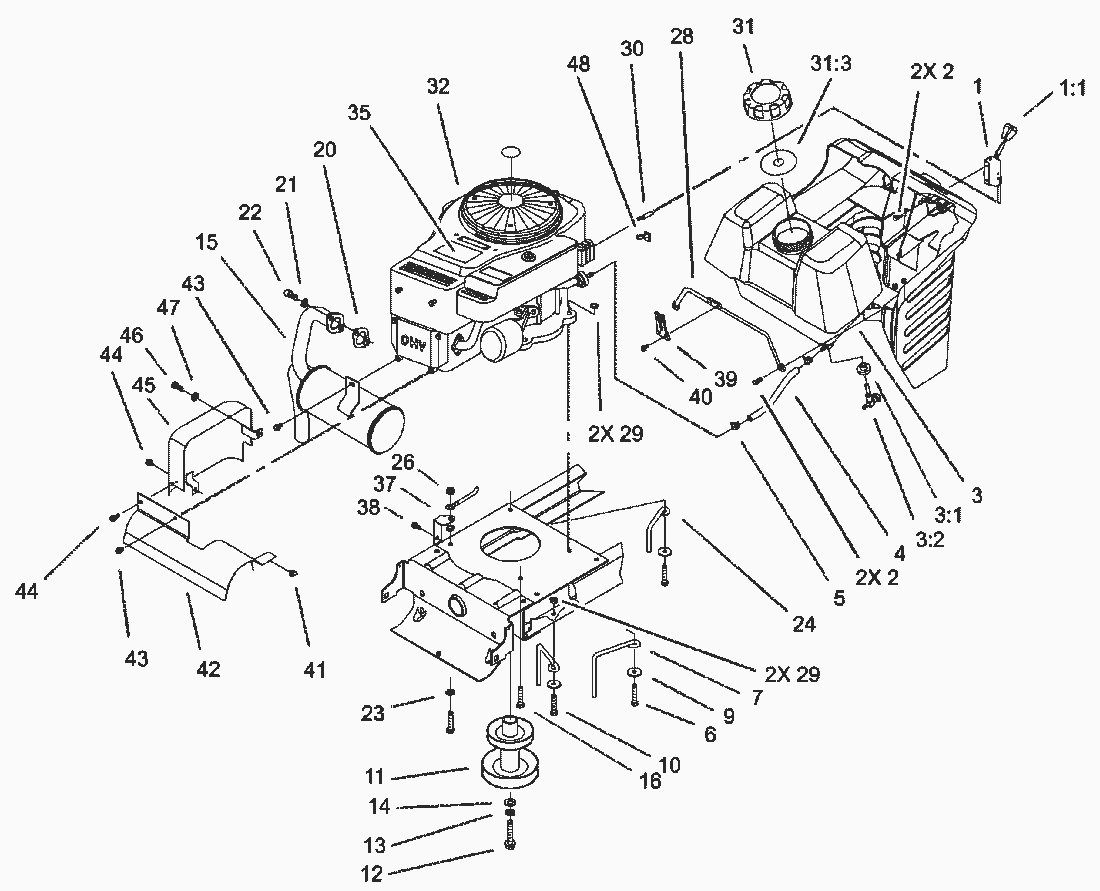

Lista de repuestos para Toro Roth / TORO Engine Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Control-Throttle88-4340
11Knob-Control66-0120
2Screw Special27-0220
3Tank-Gas88-3880
31Bushing104047
32Valve104048
4Line-Fuel47-2963
5Clamp-Hose2412-98
6Capscrew322-9
7Guide-Belt93-3854
9Washer5-4460
10Hex Hd. Capscrew322-5
11Pulley-Engine94-1963
12Screw-Cap Hex. Hd.62-3760
13Washer-Lock3253-22
14Washer-Flat3256-25
15Muffler-Exhaust94-1953
16Screw9267154
20Gasket-Muffler88-4410
21Lockwasher3253-4
22Capscrew-Hex. Socket Hd.3274-10
23Lockwasher3255-8
24Guide-Belt R.H.93-3855
26Locknut32149-1
28Rod-Gas Tank94-1952
29MUTTER3296-29
30Cable-Throttle88-4350
31Cap-Gas88-3980
313Gasket-Cap, Gas88-4010
32
35Decal-Engine, 16 HP105-2467
37Bracket-Ground93-3809
38Screw-HWHTF9266714
39Latch-Hood94-1951
40Screw-Self Tapping32144-112
41Clip-Tinnerman93-3882
42Shield-Muffler93-3880-03
43Screw-HWHTF9266714
44Self Tapping Screw32104-76
45Exhaust Shield Wa93-8450-03
46Capscrew322-3
47Lockwasher3253-4
48Reducer-Throttle88-4490
