Crankcase Assy. Engine B&S Model 286H77-0121-E1

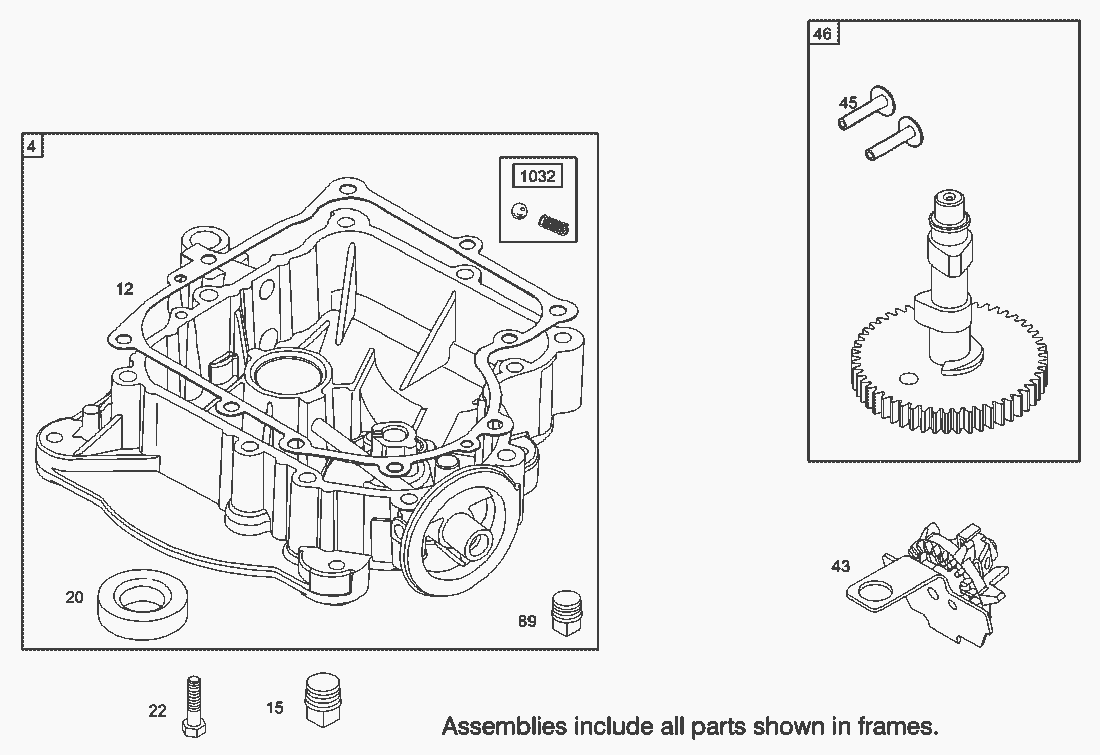

Lista de repuestos para Toro Roth / TORO Crankcase Assy. Engine B&S Model 286H77-0121-E1
pos.
descripción
Número de pieza
4
Sump-Engine
697188
12
Gasket-Crankcase
697110
15
Plug-Oil Drain
690946
20
Oil Seal(PTO Side)
690947
22
Screw-Sem
692125
43
Governor/Oil Slinger
691968
45
Tappet-Valve
690564
46
Camshaft
697139
89
Plug-Oil
690283
1032
Ball-Oil Pump
491710
