> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Cylinder Assy. Engine B&S Model 286H77-0121-E1

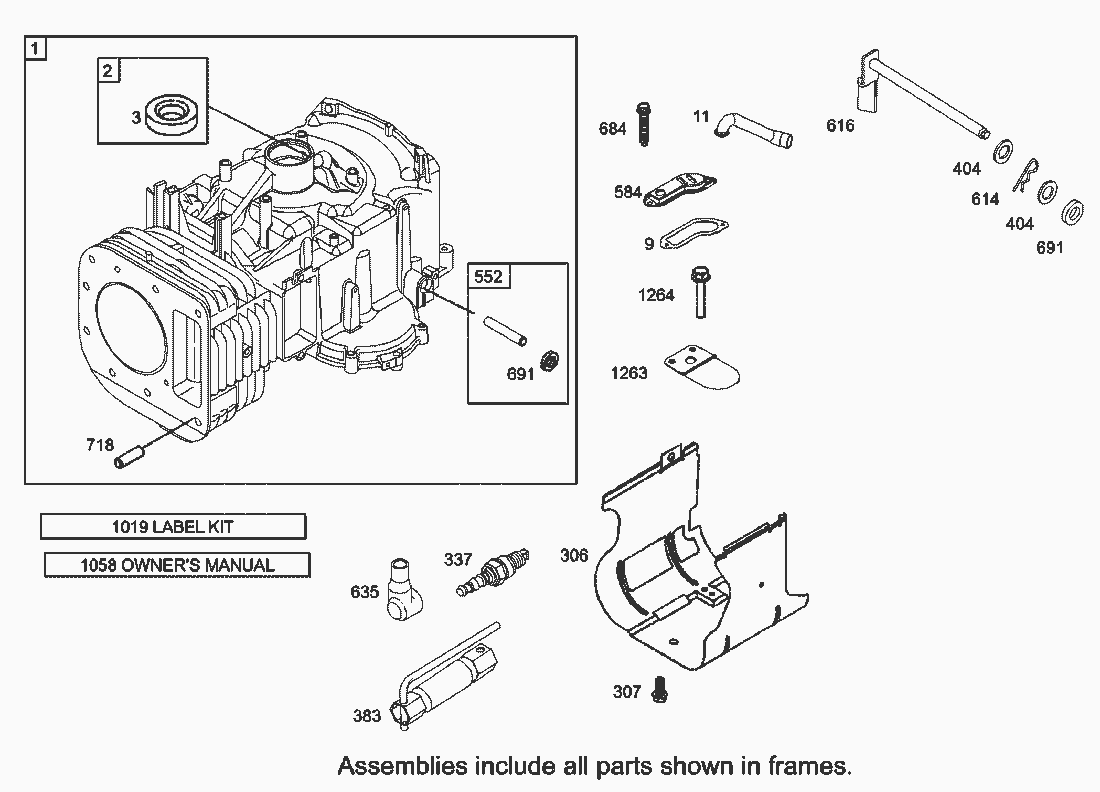

Lista de repuestos para Toro Roth / TORO Cylinder Assy. Engine B&S Model 286H77-0121-E1




Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly697132
2Bearing-Cylinder Note: Installation Requires Special Tools399265
3Seal-Oil391086
9Gasket-Breather697109
11Tube-Breather697113
306Shield-Cylinder697107
307Screw (Cylinder Shield)691003
337Plug-Spark491055
383Wrench-Spark Plug89838
404Washer (Governor Crank)691691
552Bushing-Governor697144
584Cover-Breather Passage697112
614Pin-Cotter691620
616Crank-Governor692012
635Boot-Spark Plug691909
684Screw (Breather Passage Cover)697157
691Seal-Governor Shaft692407
718Locating Pin690959
1019Kit-Label697143
1058Owner s Manual275038
1263Reed-Breather697124
1264Screw (Breather Reed)697104
