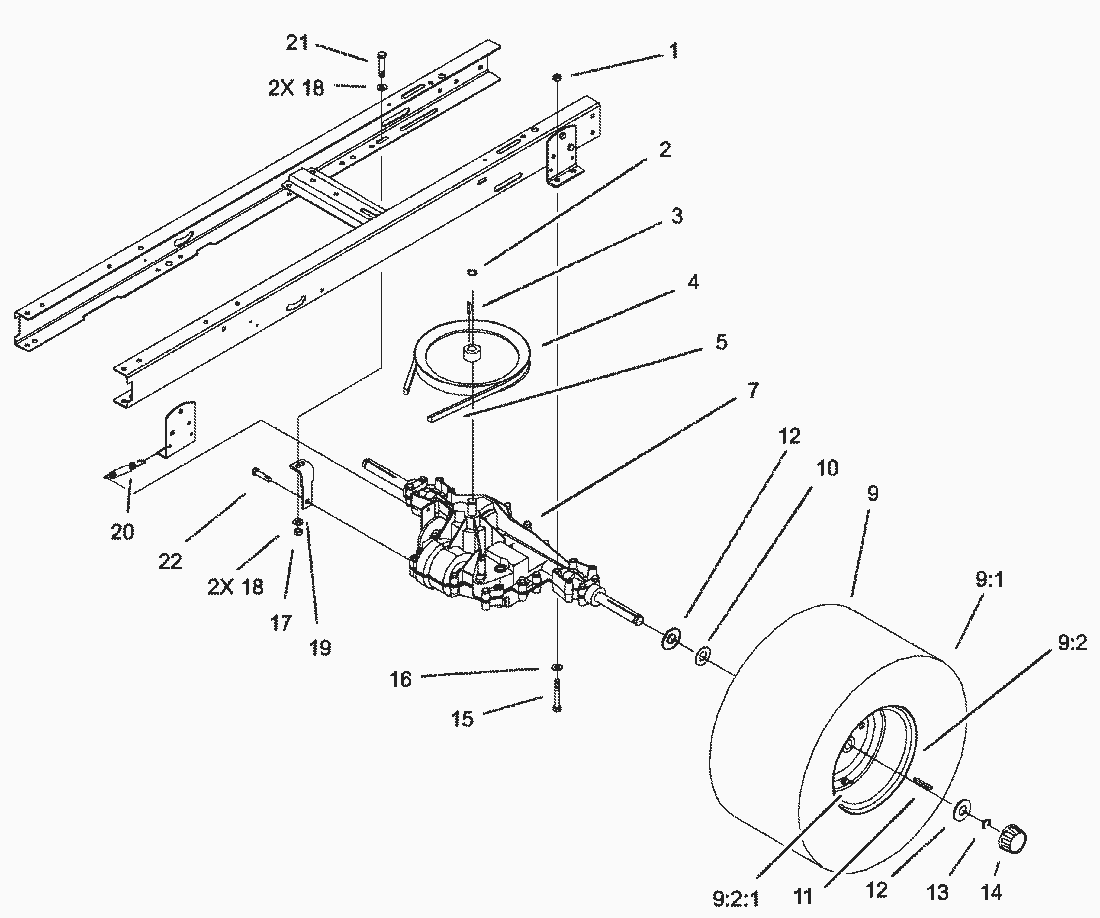

Lista de repuestos para Toro Roth / TORO 5 Speed Transaxle Assy.

pos.	descripción	Número de pieza
1	MUTTER	3296-29
2	Ring-External Retaining	32120-64
3	Key Woodruff	3257-23
4	Pulley-Transmission	88-4840
5	V-Belt-Traction	88-6270
7	Transaxle	94-6022
9
91	Tire (Only On: Serial No. 9005001 & Up)	99-2996
92	Rim	88-4390
921	Valve Stem	232-27
999	Inner Tube (Optional)	232-41
10	Washer-Thrust	3-6498
11	Key	7-0036
12	Washer	28-2480
13	E-Ring-External	32151-48
14	Cap-Hub	61-9780
15	Screw-Cap Hex. Hd.	322-12
16	Washer	3256-23
17	MUTTER	3296-29
18	Washer	3256-23
19	Strap-Torque	94-1969
20	Spring-Brake Return	26-6701
21	Capscrew	322-3
22	Screw-Wash. Hd., Tap.	32144-14
