> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Carburetor Assy. Engine B&S Model 286H77-0121-E1

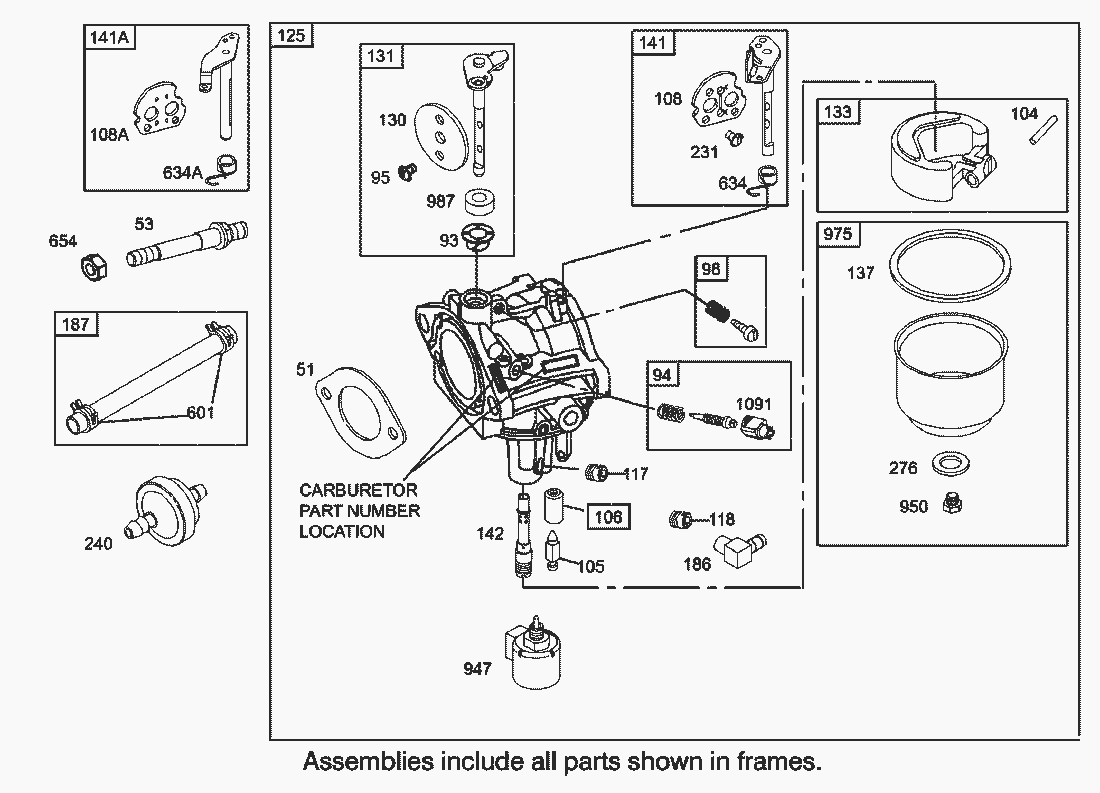

Lista de repuestos para Toro Roth / TORO Carburetor Assy. Engine B&S Model 286H77-0121-E1




Lista de repuestos


pos.descripciónNúmero de pieza
51Gasket-Intake692137
53Stud-Carb. Mtg.690227
93Bushing-Throttle Shaft690602
94Valve-Needle498030
95Screw (Throttle Valve)691636
98Screw-ldle Speed495800
104Pin-Float Hinge690525
105Valve Assy.-Inlet Needle231855
106Seat-Inlet690577
108Valve-Choke (Manual Choke)690464
108Valve-Choke (Choke A Matic)692344
117Jet-Main (Standard)694352
118Jet-Main (High Altitude)697228
125Carburetor697190
130Valve-Throttle691750
131Shaft and Lever-Throttle494379
133Float-Carburetor494381
137Gasket-Float Bowl281165
141Shaft Kit-Choke (Manual)495097
141Shaft and Lever-Choke495931
142Nozzle-Carburetor697140
186Hose Connector692317
187Fuel Line(Cut to Required Length)691050
231Screw (Throttle Valve)691636
240Filter-Fuel (In Fuel Line)394358
276Sealing Washer692255
601Clamp-Hose95162
634Spring/Seal Assembly690801
634Spring/Seal Assembly690802
654Nut (Carburetor)690958
947Solenoid-Fuel694393
950Screw (Float Bowl)691657
975Bowl-Float495933
987Seal-Throttle Shaft691326
1091Cap-Limiter691333
