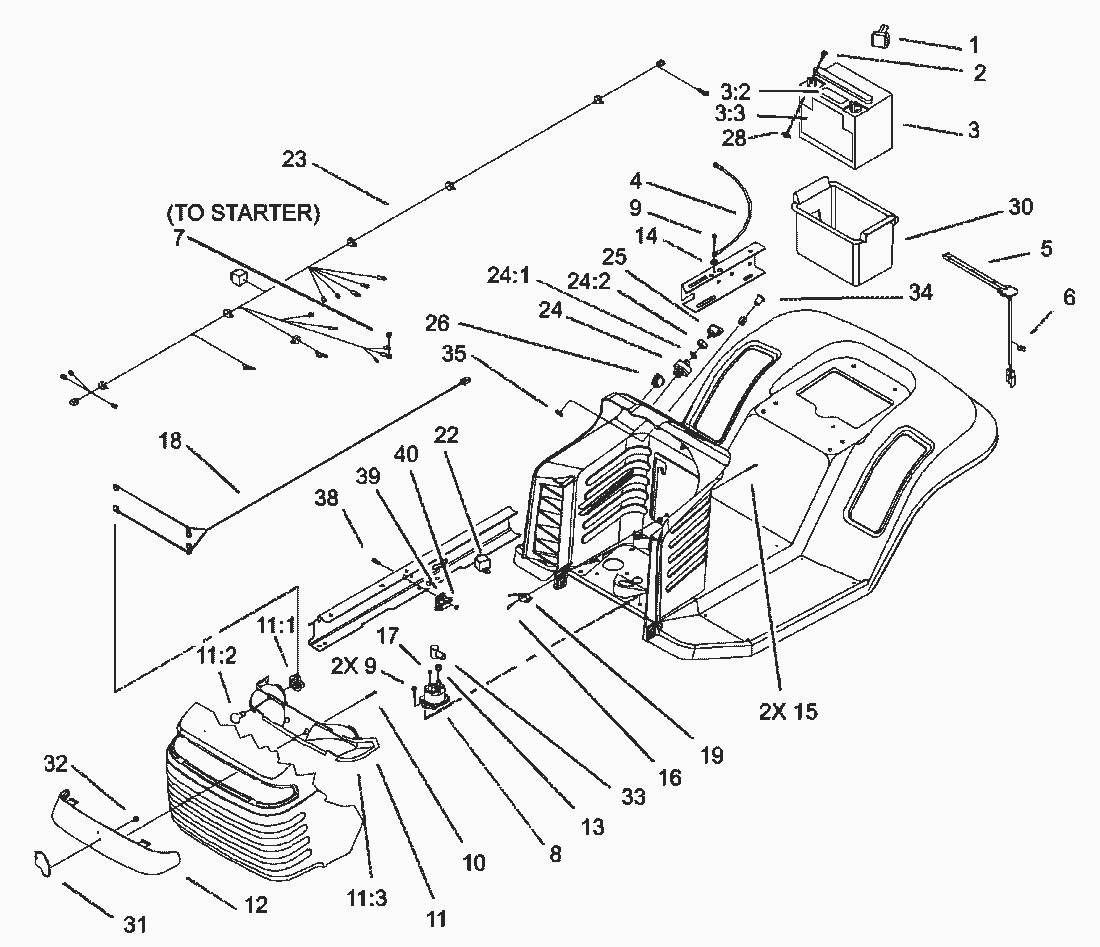

Lista de repuestos para Toro Roth / TORO Electrical Assy.

pos.	descripción	Número de pieza
1	Boot-Battery Terminal	28-8080
2	Capscrew	321-4
3	Battery-155 Cca	104-1755
32	Decal-Battery	104-4163
33	Decal-Battery	104-4164
4	Cable-Battery Negative	44-8110
5	Switch-Seat	38-1420
6	Clip-Wire Retainer	702366
7	Locknut	32149-2
8	Solenoid	28-4210
9	Screw-HWHTF	9266714
10	Screw-Plastite	32144-32
11	Reflector & Lamp	88-3970
111	Socket Assembly	111686
112	Light Bulb	7228
113	Reflector-Headlight	93-8741
12	Lens-Headlights	88-3960
13	Locknut	32149-1
14	Lockwasher	3255-7
15	Screw (Only On: 72103)	93-0539
16	Speed Nut	3290-354
17	Keps Nut	32149-8
18	Harness-Headlight	99-1935
19	Switch-Micro	88-9932
22	Relay (Only On: 73470)	98-7249
23	Harness-Wire, Gear	99-6841
24	Switch-Ignition	88-9830
241	Lockwasher	3254-5
242	Hex Nut	218-461
25	Key-Ignition	63-8360
26	Switch-Rocker	92-8875
28	Nut-Wing	32103-22
30	Box-Battery	88-4040
31	Plate-Grille Panel	80-2240
32	Nut-Tinnerman	3290-299
33	Boot-Terminal Insulator (Only On: 72103, 72083)	93-3190
34	Light-Indicator	95-7652
35	Clip-Retainer	99-6059
38	Screw-HSH (Only On: 73470)	3274-14
39	Switch-Single Pole (Only On: 73470)	65-7410
40	Nut	3296-2
