> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Governor Assy. Engine B&S Model 286H77-0121-E1

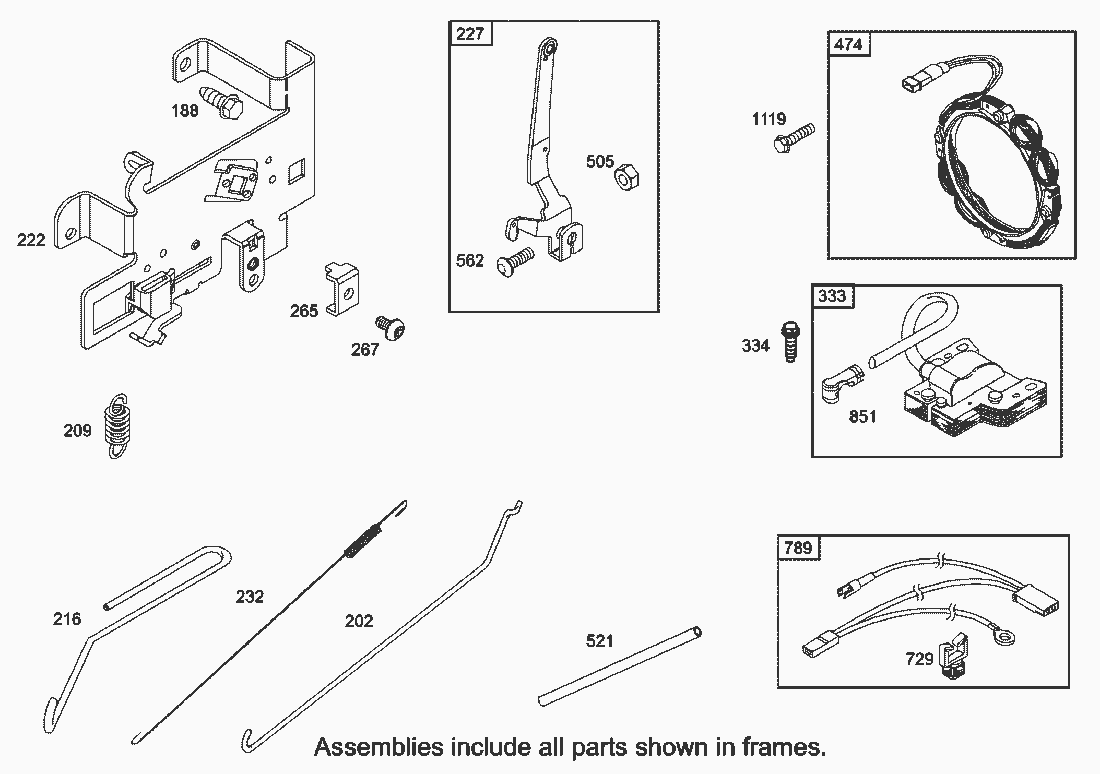

Lista de repuestos para Toro Roth / TORO Governor Assy. Engine B&S Model 286H77-0121-E1




Lista de repuestos


pos.descripciónNúmero de pieza
188Screw(Air Cleaner Base)691693
202Link-Mechanical Governor691841
209Spring-Governor692208
216Link-Choke691840
222Bracket-Control694042
227Lever-Governor Control691374
232Spring-Governor Link691842
265Clamp-Casing691024
267Screw (Casing Clamp)695134
333Armature-Magneto492341
334Screw (Magneto Armature)691061
474Alternator696459
505Nut (Governor Control Lever)691251
521Shield-Cable690581
562Bolt (Governor Control Lever)691119
729Clip-Wire691335
789Harness-Wiring692037
851Terminal-Ignition Cable493880
1119Screw (Alternator)691183
