> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Carburetor Overhaul Kit Assy. Engine B&S Model 286H77-0121-E1

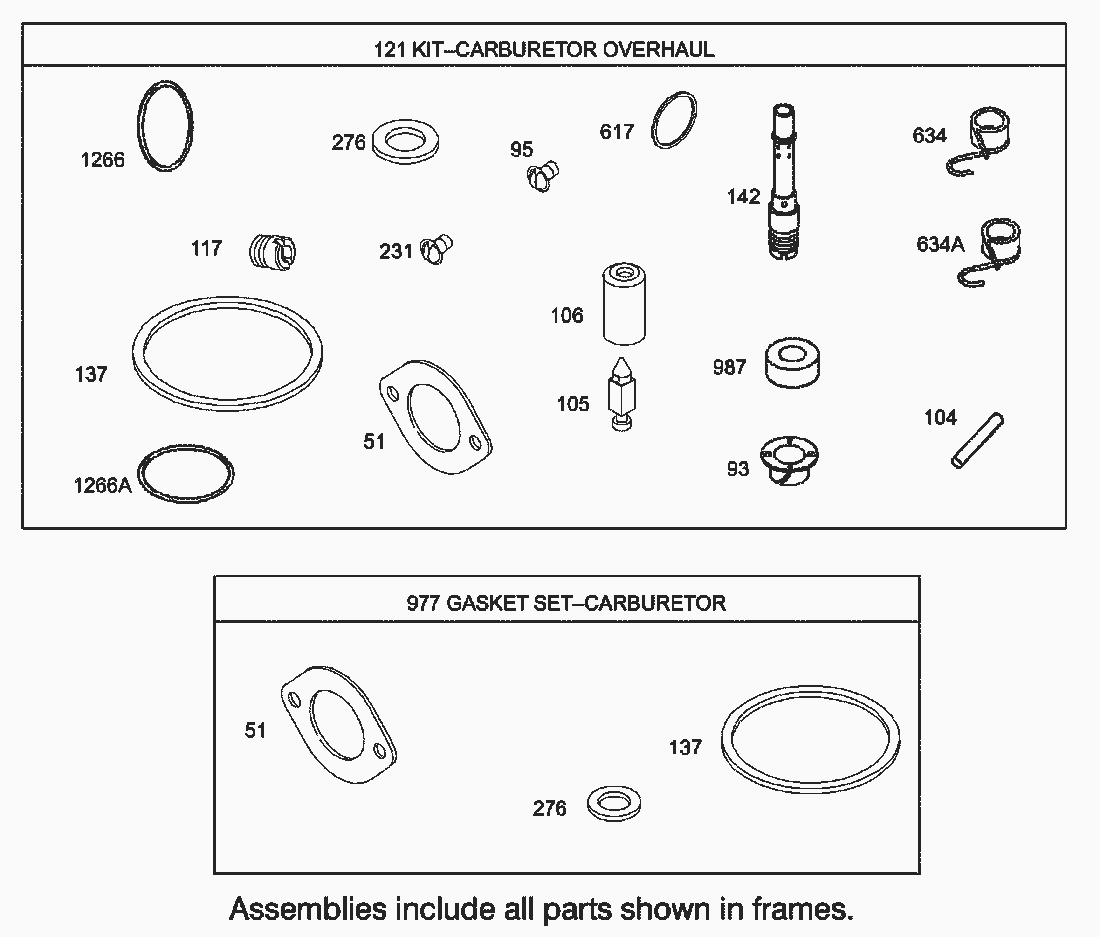

Lista de repuestos para Toro Roth / TORO Carburetor Overhaul Kit Assy. Engine B&S Model 286H77-0121-E1




Lista de repuestos


pos.descripciónNúmero de pieza
51Gasket-Intake692137
93Bushing-Throttle Shaft690602
95Screw (Throttle Valve)691636
104Pin-Float Hinge690525
105Valve Assy.-Inlet Needle231855
106Seat-Inlet690577
117Jet-Main (Standard)694352
121Kit-Carburetor Overhaul697154
137Gasket-Float Bowl281165
142Nozzle-Carburetor697140
231Screw (Throttle Valve)691636
276Sealing Washer692255
617Gasket-Intake692138
634Spring/Seal Assembly690801
634Spring/Seal Assembly690802
977Carburetor Gasket Set690192
987Seal-Throttle Shaft691326
1266Seal-O Ring (Intake Elbow)691917
1266Seal-O Ring (Intake Elbow)697123
