> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 > Crankshaft Assy. Engine B&S Model 286H77-0121-E1

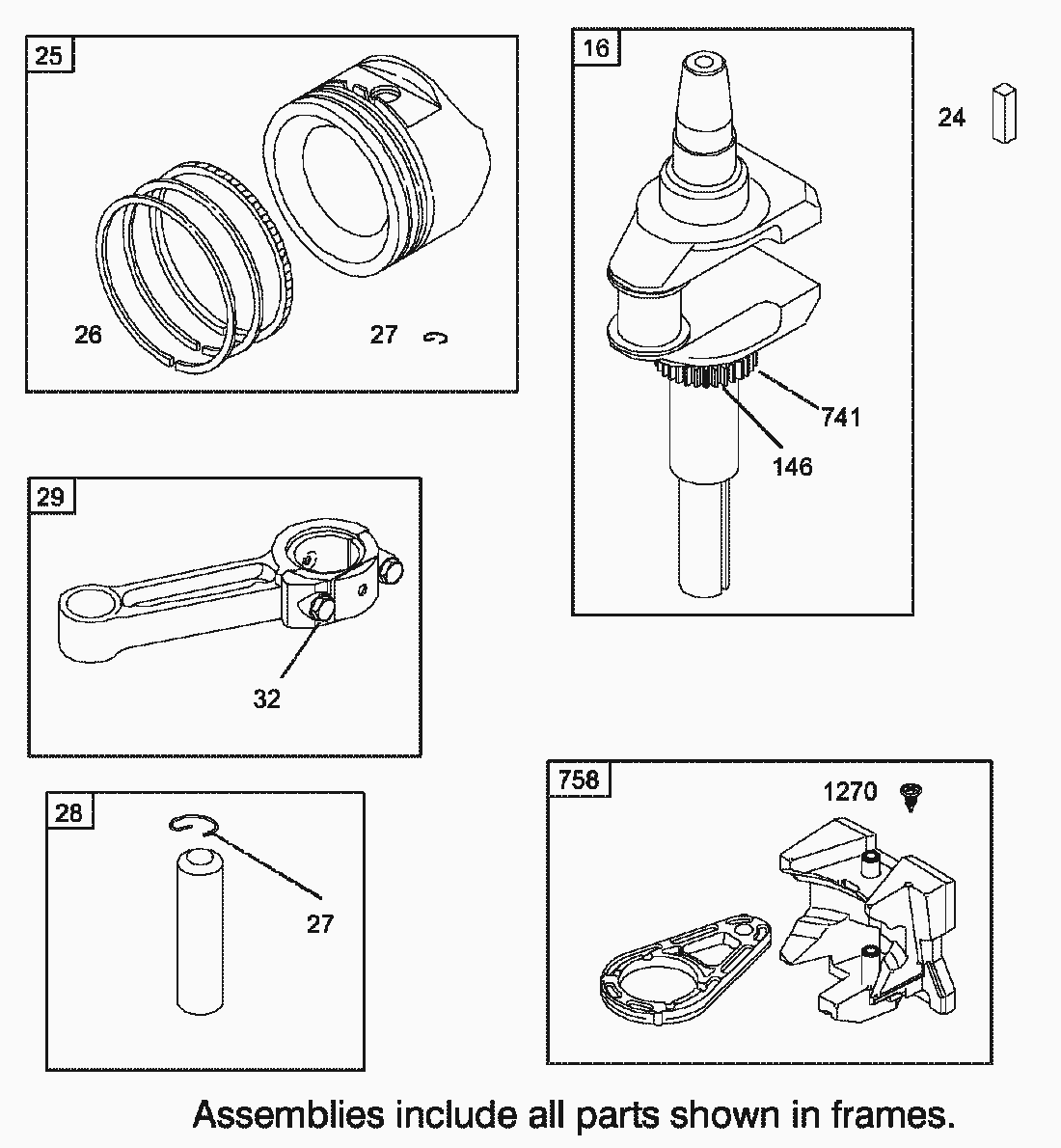

Lista de repuestos para Toro Roth / TORO Crankshaft Assy. Engine B&S Model 286H77-0121-E1




pos.descripciónNúmero de pieza
697116
697118
697117
697264
697121
697120
697119
Lista de repuestos


pos.descripciónNúmero de pieza
16Crankshaft697127
24Key-Flywheel222698
25Piston Assembly (Standard)697114
26Ring Set (Standard)697115
27Lock-Piston Pin697199
28Pin-Piston (Standard)697099
29Rod-Connecting (Standard)697126
32Screw-Conn. Rod692852
146Timing Key690979
741Gear-Timing697128
758Counterweight697134
1270Plug-AVS Counterweight697156
