> Roth / TORO > Ride-On Mowers > Traktor > 16-38 XLE > 358/71226 > 220010001 >

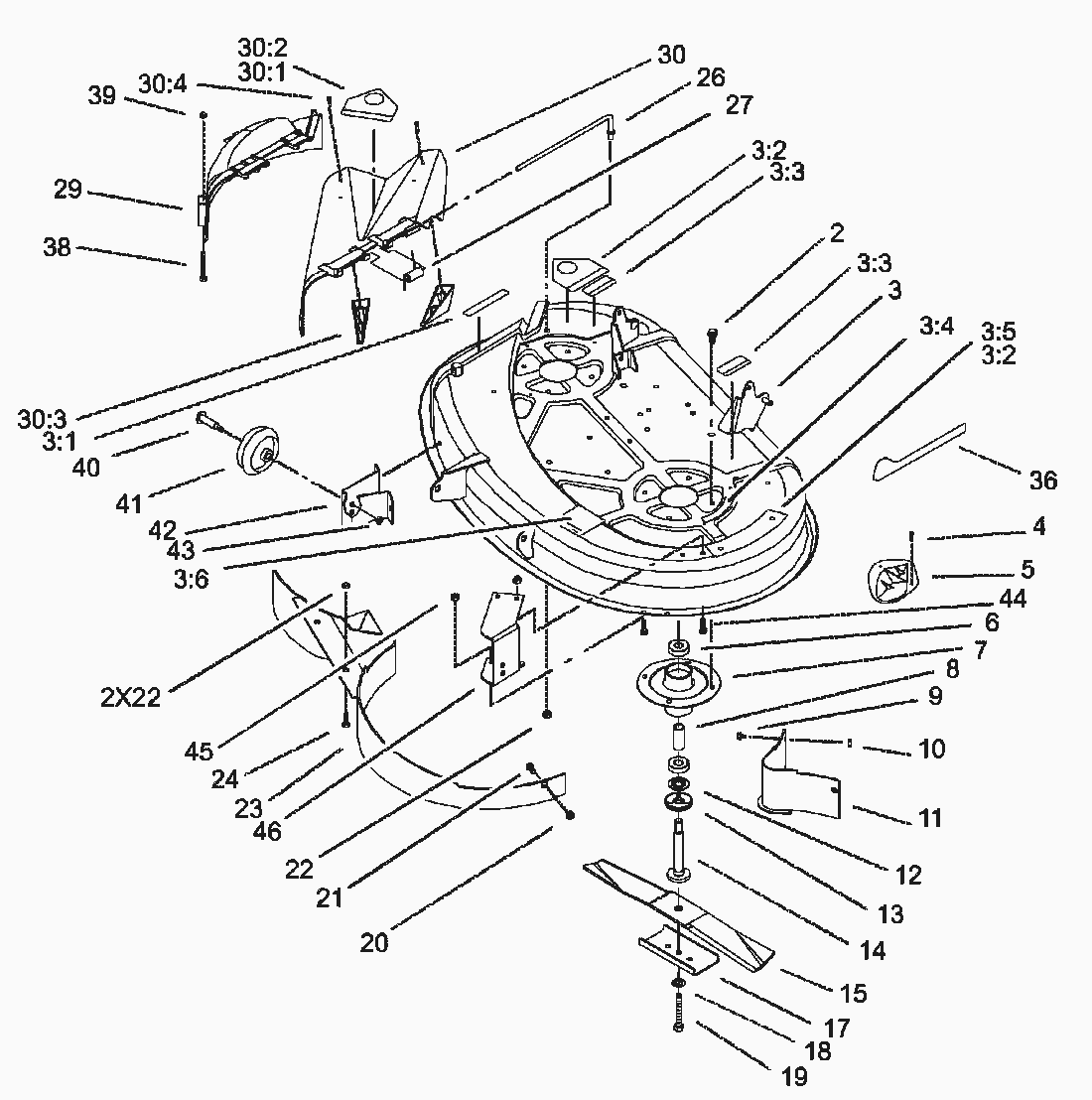

Lista de repuestos para Toro Roth / TORO




Lista de repuestos


pos.descripciónNúmero de pieza
2Thread Forming Screw32144-41
3Deck Asm-service (Only On: 71198)99-5846
3Deck ASM-Service,Intl (Only On: 71220)99-5847
31Decal-Deflector Danger (Model No. 71200 Only)93-7009
31Decal-Deflector Danger68-3650
32Decal-Danger93-1122
32Decal-Danger (Model No. 71200 Only)93-7010
33Decal Warning55-4300
33Decal-Warning (Model No. 71200 Only)93-6674
34Decal-Shield Danger93-6677
34Decal-Shield Danger68-3660
35Decal-Danger79-3140
36Decal-Belt Guide93-6679
4Screw-Pan Hd.32144-111
5Plate-Kicker Left Rear (H.P. Models Only)76-2160
6Bearing-Ball100-1048
7Housing-Spindle88-4510
8Spacer-Bearing62-3661
9Capscrew321-4
10MUTTER3296-42
11Baffle (Model No. 78226 Only)79-1640-03
12Spacer-Hardened80-4380
13Shield-Bearing80-4360
14Shaft-Spindle80-4341
15Blade- Recycler79-3061
17Blade-Stiffener (Model No. 78226)80-0510-03
18Washer-Belleville3290-465
19Screw-Blade26-0671
20MUTTER3296-29
21Carriage Bolt3230-1
22Locknut3296-39
23Baffle (Model No. 78226 Only)79-1600-03
24Bolt323-5
26Rod-Pivot95-1661
27Spring-Torsion57-6950
29Cover-Recycler88-4430
30Deflector Assembly (Incl. Ref.93-7695
30Chute/Safety Decal Assy.93-0317
