volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 xi
>
520/73541
>
8900001
>

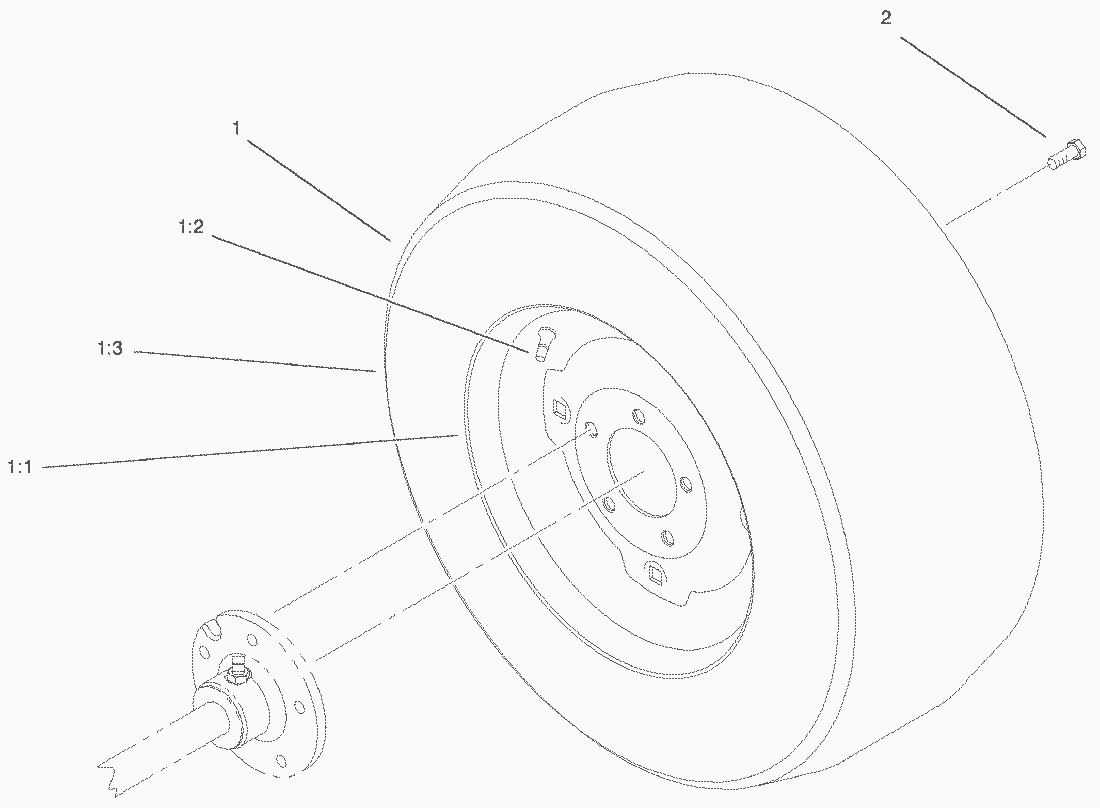

Wheel Assy.
Lista de repuestos para Toro Roth / TORO Wheel Assy.
pos.
descripción
Número de pieza
1
Rear Wheel & Tire ASM (Only On: 73470, 73540)
94-2194
1
Rear Wheel & Tire ASM (Only On: 73541)
95-4086
11
Tire (Only On: 73470, 73540)
94-2193
11
Tire (Only On: 73541)
95-4087
12
Valve Stem
5108
13
Wheel
110680
2
Bolt-Lug
83-2720
Tube
7007
