> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Lower Parking Brake Assy.

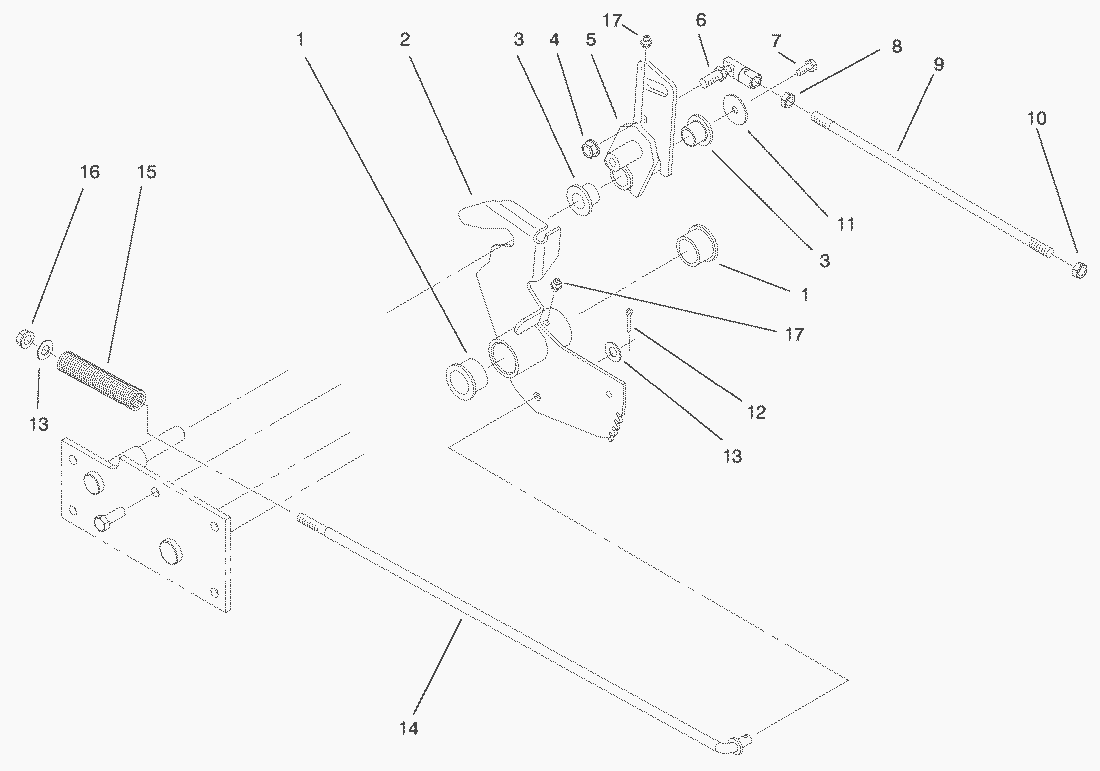

Lista de repuestos para Toro Roth / TORO Lower Parking Brake Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Bushing-Flanged94-7574
2Brake Pivot Plate94-2375-03
3Bushing94-7569
4Locknut3296-6
5Hydro Pivot94-2488-03
6Tie Rod End LH94-7573
7Screw-Lock94-7955
8Jam Nut LH Thread3220-16
9Rod-Pivot To Pedal94-2498
10Jam Nut3220-3
11Washer-Pivot3256-55
12Pin-Cotter3272-10
13Flat Washer3256-24
14Rod-Brake94-2393
15Spring-Compression94-7906
16Locknut3296-39
17Grease Fitting302-5
