> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Manual Steering and Tilt Assy.

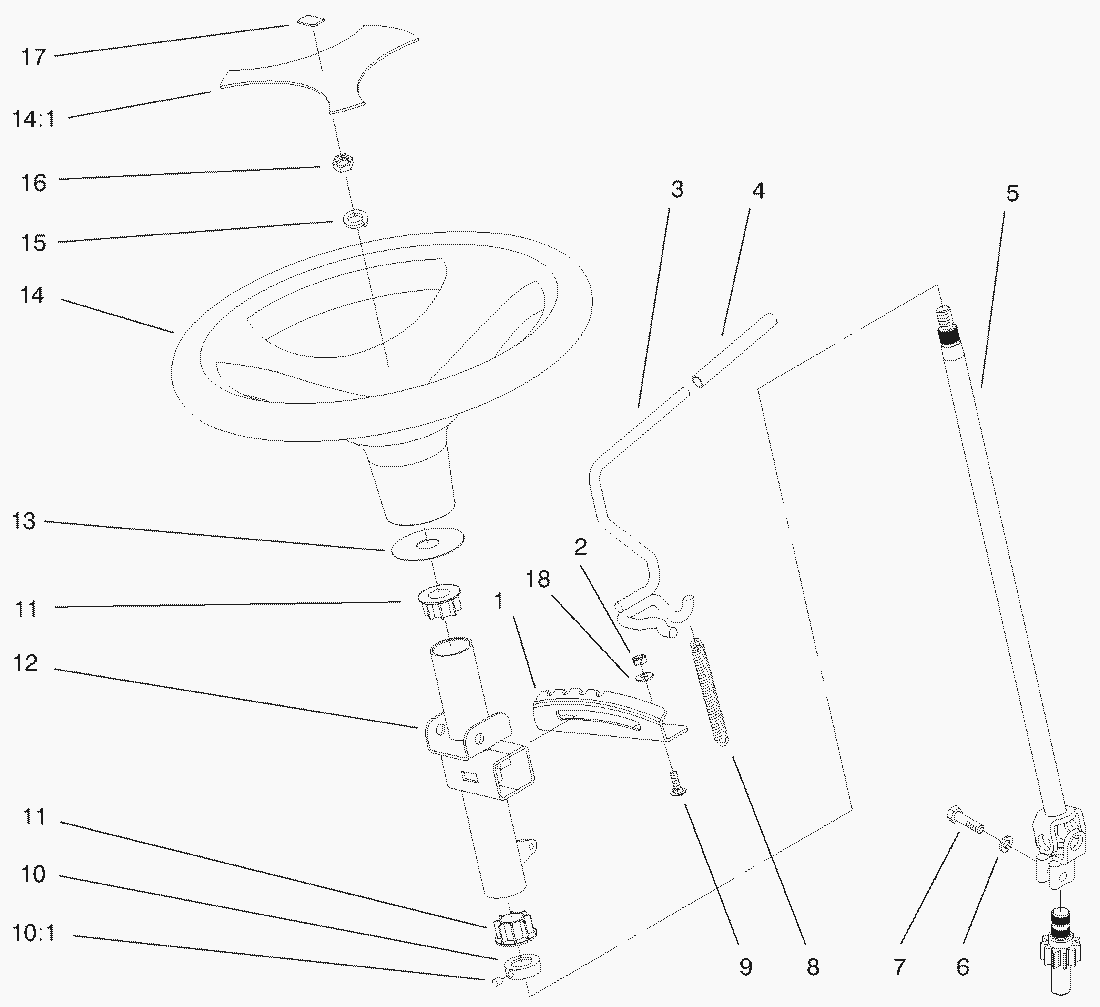

Lista de repuestos para Toro Roth / TORO Manual Steering and Tilt Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Bracket94-2382
2MUTTER3296-42
3Lever-Tilt95-3964
4Cap-Rod92-6798
5Shaft-Steering94-2047
6Lockwasher3253-4
7Screw-HH33114-030
8Spring95-3805
9Carriage Bolt3229-1
10Collar111383
101Set Screw3245-32
11Bushing -Steering93-1146
12Manual Column ASM94-2450-03
13Washer-Boot94-2025
14Steering Wheel ASM (Only On: 73470)98-1471
14Steering Wheel ASM (Only On: 73540, 73541)98-1474
141Cover ASM (Incl. Ref.98-7211
15Washer-Lock48-8070
16Nut-HH3277-1
17Decal98-1459
18Washer3256-22
