> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Cruise Control Assy.

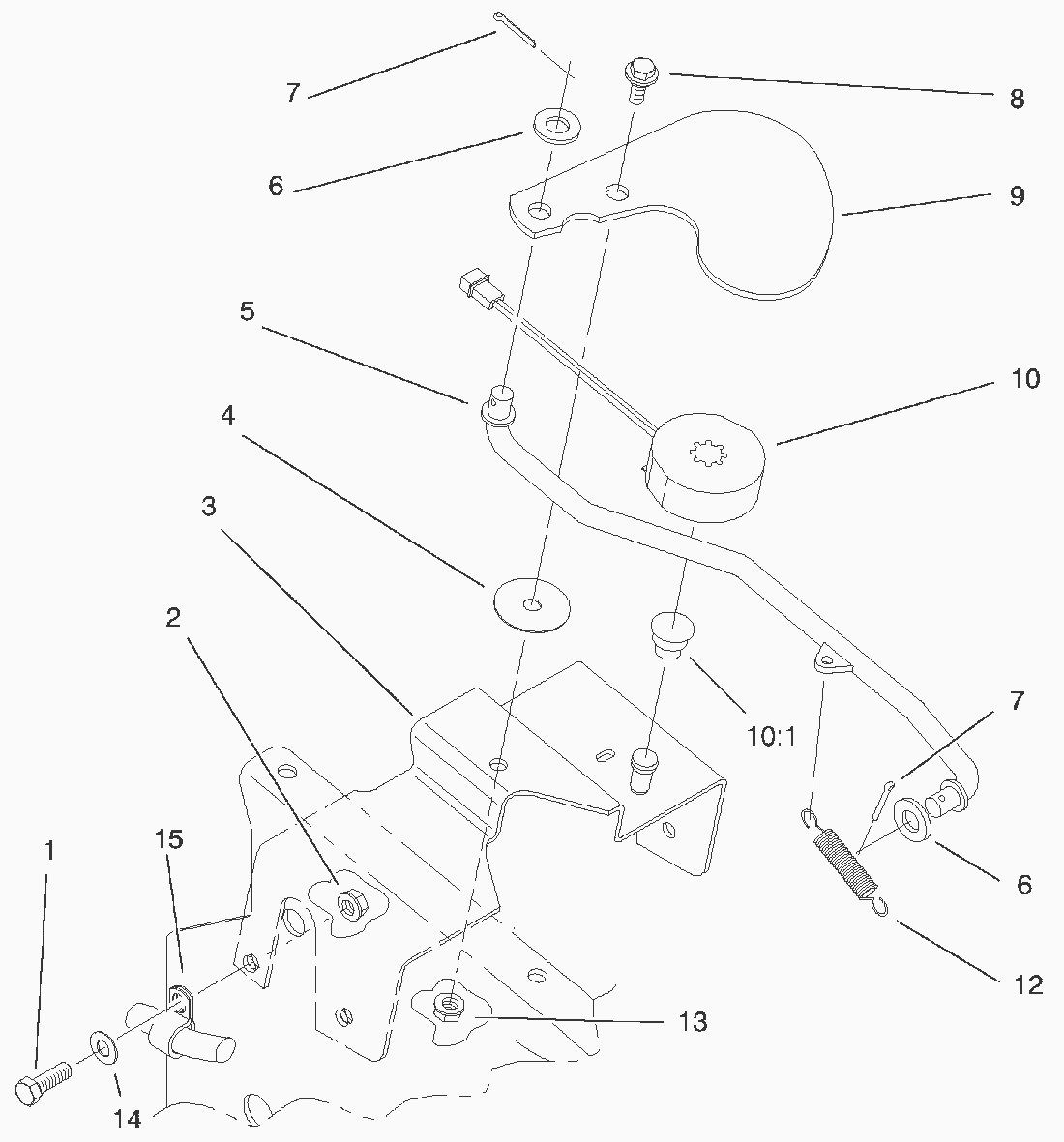

Lista de repuestos para Toro Roth / TORO Cruise Control Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Capscrew323-6
2Locknut3296-39
3Bracket-Cruise Control (Only On: 73540, 73541)94-2494-03
4Spacer-Cruise (Only On: 73540, 73541)94-7575
5Rod-Cruise Control (Only On: 73540, 73541)94-7980
6Washer3256-26
7Pin-Cotter3272-10
8Bolt-Shoulder94-7582
9Plate-Magnet (Only On: 73540, 73541)94-2158
10Magnet Assembly (INCL 7: Only On: 72103)93-4366
101Spring-Conical (Only On: 72103)93-6601
12Spring (Only On: 73540, 73541)66-4160
13Nut-Lock108881
14Flat Washer3256-24
15Clamp-R98-2358
