> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Bumper and Hood Assy.

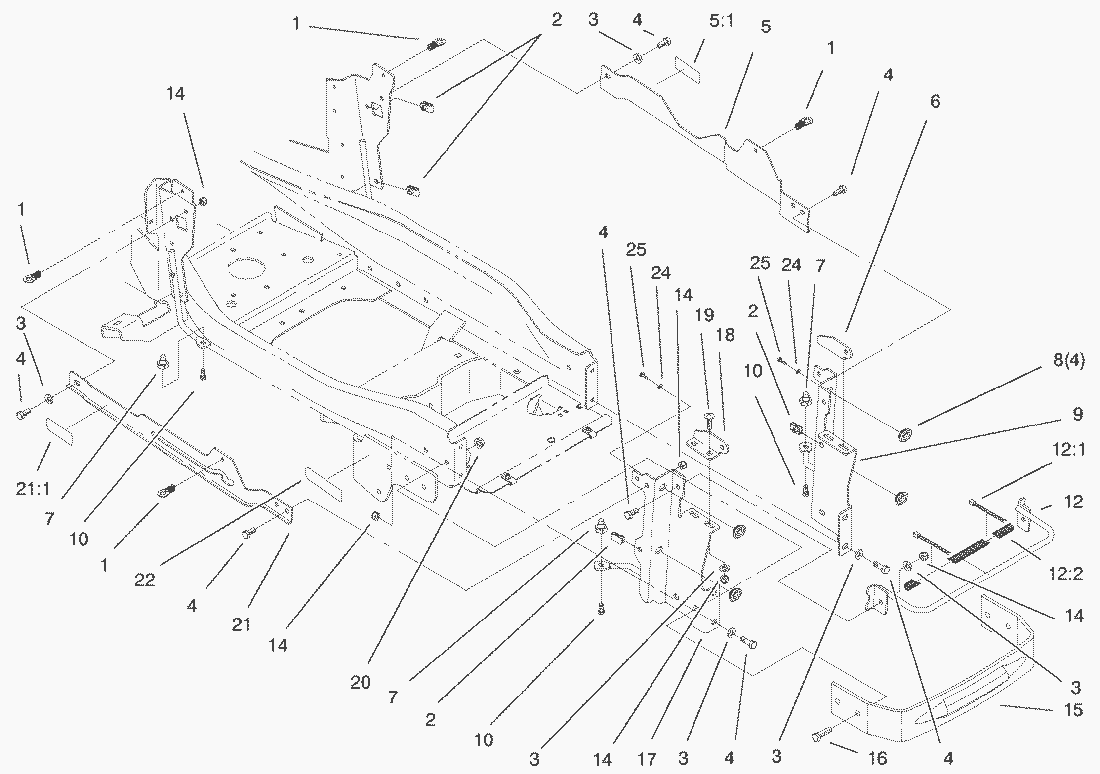

Lista de repuestos para Toro Roth / TORO Bumper and Hood Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Latch Assembly95-4013
2Nut-Speed107069
3Washer3256-23
4Capscrew322-3
5Support ASM (Only On: 73470, 73540)98-5064-03
5Support ASM (Only On: 73541)98-5070-03
51Decal-Warning (Only On: 73470, 73540)98-5014
51Decal-Warning (Only On: 73541)98-5015
6Bracket-Hinge Lower LH94-7995-03
7Mount-Sidepanel95-3989
8Grommet94-7910
9Hood Support LH95-4082-03
10Screw-TAP46-8093
12Hood Support ASM98-7203
121Cover-Brace95-4258
122Tie Strap614249
14MUTTER3296-29
15Bumper-Frame94-2308-03
16Screw-Cap Hex Hd.323-7
17Hood Support RH95-4081-03
18Bracket-Hinge Lower RH94-7994-03
19Carriage Bolt3230-16
20Locknut3296-39
21Support ASM (Only On: 73470, 73540)98-5061-03
21Support ASM (Only On: 73541)98-5063-03
211Decal-Warning (Only On: 73470, 73540)98-5014
211Decal-Warning (Only On: 73541)98-5015
22Decal-Attach-A-Matic92-8747
24Washer3256-61
25Screw-Hex. Hd. Tapping32144-42
26Clamp-Tube (Only On: 73551, 73550)98-1617
27Decal-Hot Surface (Only On: 73551, 73550)93-8069
