> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Grill and Side Panel Assy.

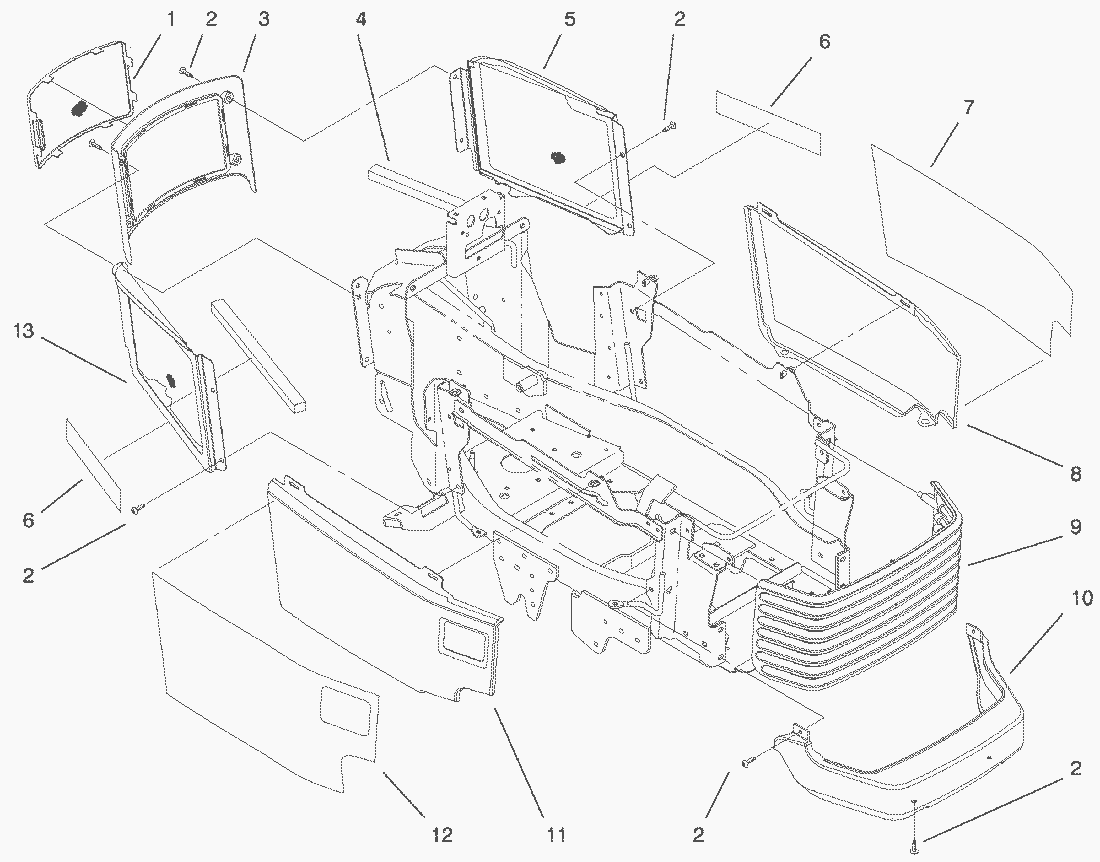

Lista de repuestos para Toro Roth / TORO Grill and Side Panel Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Screen-Rear94-2417-03
2Screw-TTH92-7020
3Cover-Rear94-2093
4Foam-Seal95-4231
5Cover-Side LH95-4114-03
6Decal-518xi (Only On: 73470)98-1603
6Decal-520xi (Only On: 73540, 73541)98-1604
7Decal-Hood LH95-4260
8Sidepanel-Hood94-2088-01
9Grille94-2104
10Cover-Bumper94-2103
11Sidepanel-Hood94-2087-01
12Decal-Hood RH95-4261
13Cover-Side RH95-4113-03
