> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Manual Steering Lower Assy.

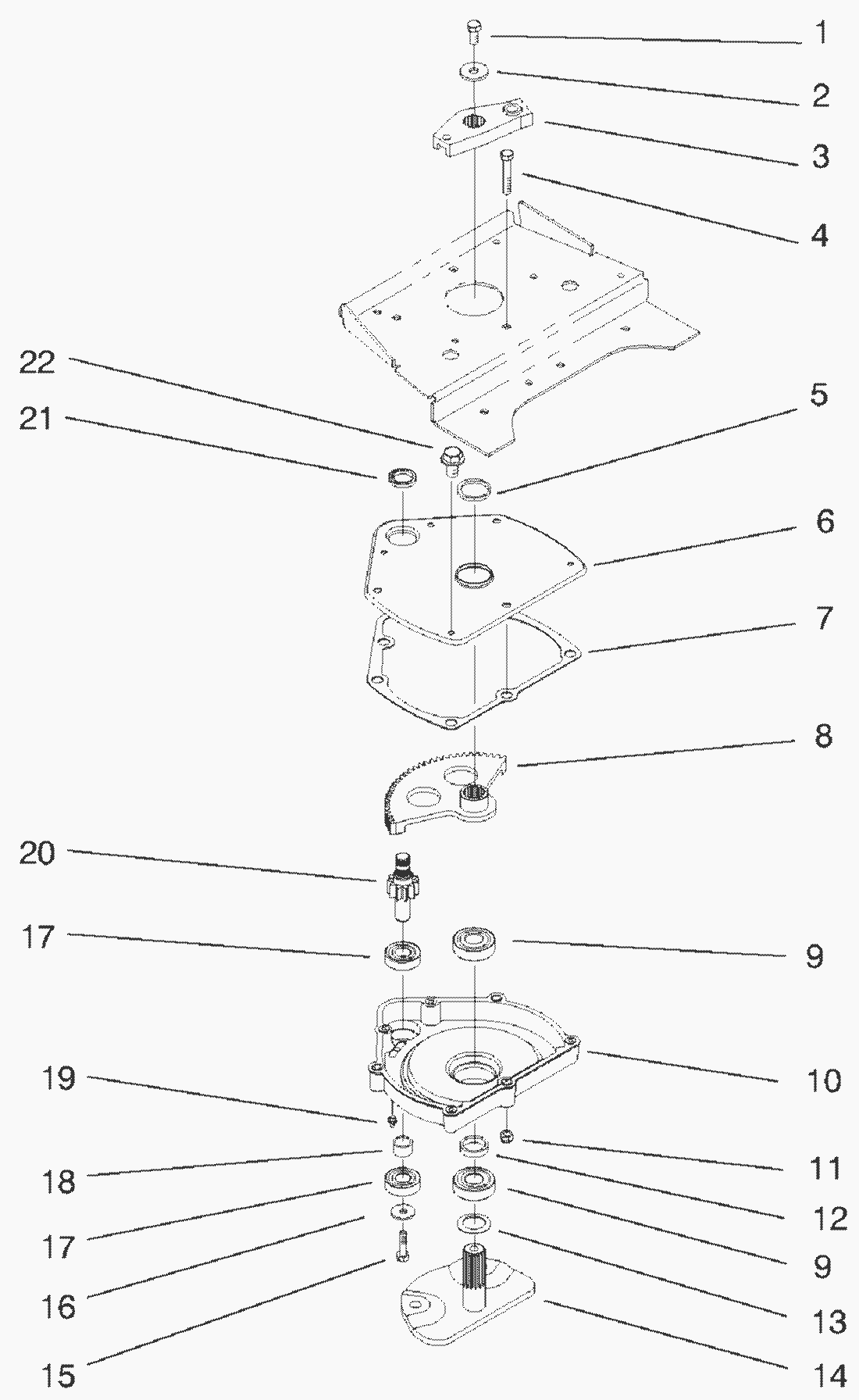

Lista de repuestos para Toro Roth / TORO Manual Steering Lower Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Screw-Thread Locking98-3052
2Washer-Special2844
3Arm-Upper94-2140
4Capscrew322-10
5Seal-Oil103118
6Cover94-2134-03
7Gasket94-2135
8Gear-Sector94-2137
9Bearing-Ball251-82
10Housing-Steering94-2133
11MUTTER3296-29
12Spacer-Output Shaft94-2218
13Washer-Flat3256-42
14Arm-Lower94-2142-03
15Screw-HH98-3498
16Washer3256-82
17Ball Bearing38-7820
18Spacer-Input Shaft94-2217
19Grease Fitting302-5
20Pinion-Input Shaft94-2136
21Seal-Oil94-7856
22Screw Thread Forming32144-10
