volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 xi
>
520/73541
>
8900001
>

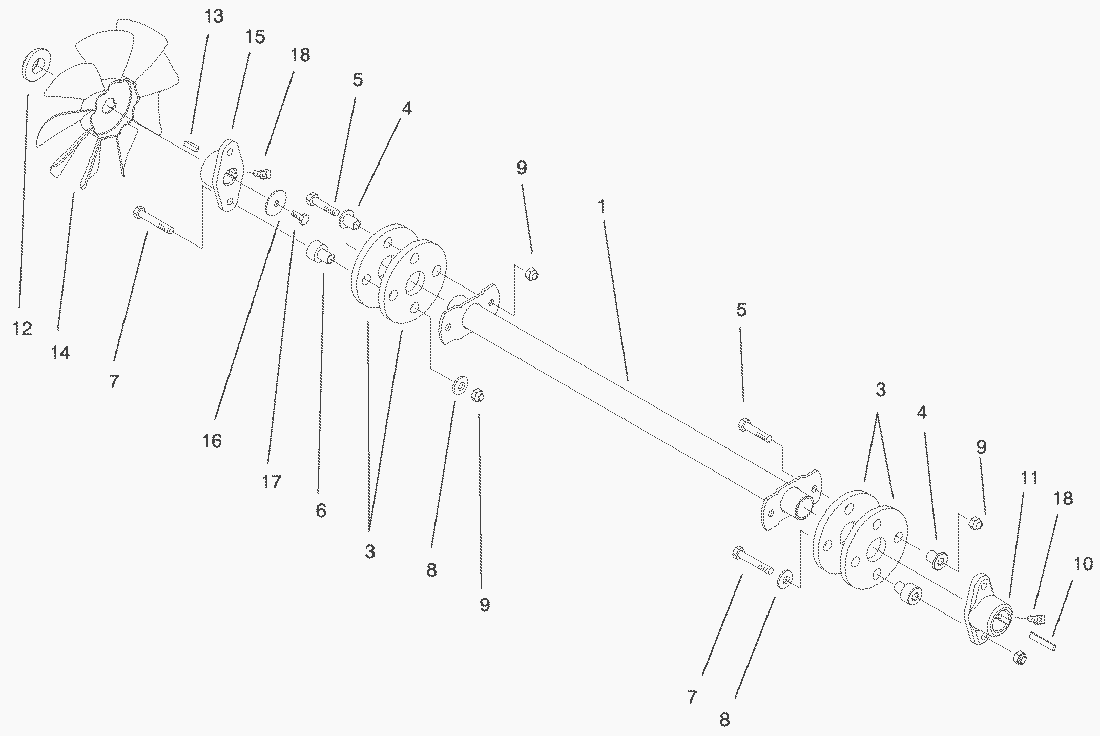

Drive Shaft Assy.
Lista de repuestos para Toro Roth / TORO Drive Shaft Assy.
pos.
descripción
Número de pieza
1
Drive Shaft
94-2373-03
3
Coupling-Rubber
44-2230
4
Spacer-Coupling
71-4411
5
Capscrew
322-7
6
Spacer-Coupling
71-4410
7
Screw-Cap Hex. Hd.
322-11
8
Flat Washer
3256-3
9
MUTTER
3296-29
10
Key-Square
94-2425
11
Hub
94-2059
12
Spacer-Fan
94-2371
13
Key-Woodruff
937089
14
Fan-Hydro
95-4223
15
Hub
94-2310
16
Special Washer
103995
17
Screw-Lock
94-7955
18
Screw-Square Set
94-7975
