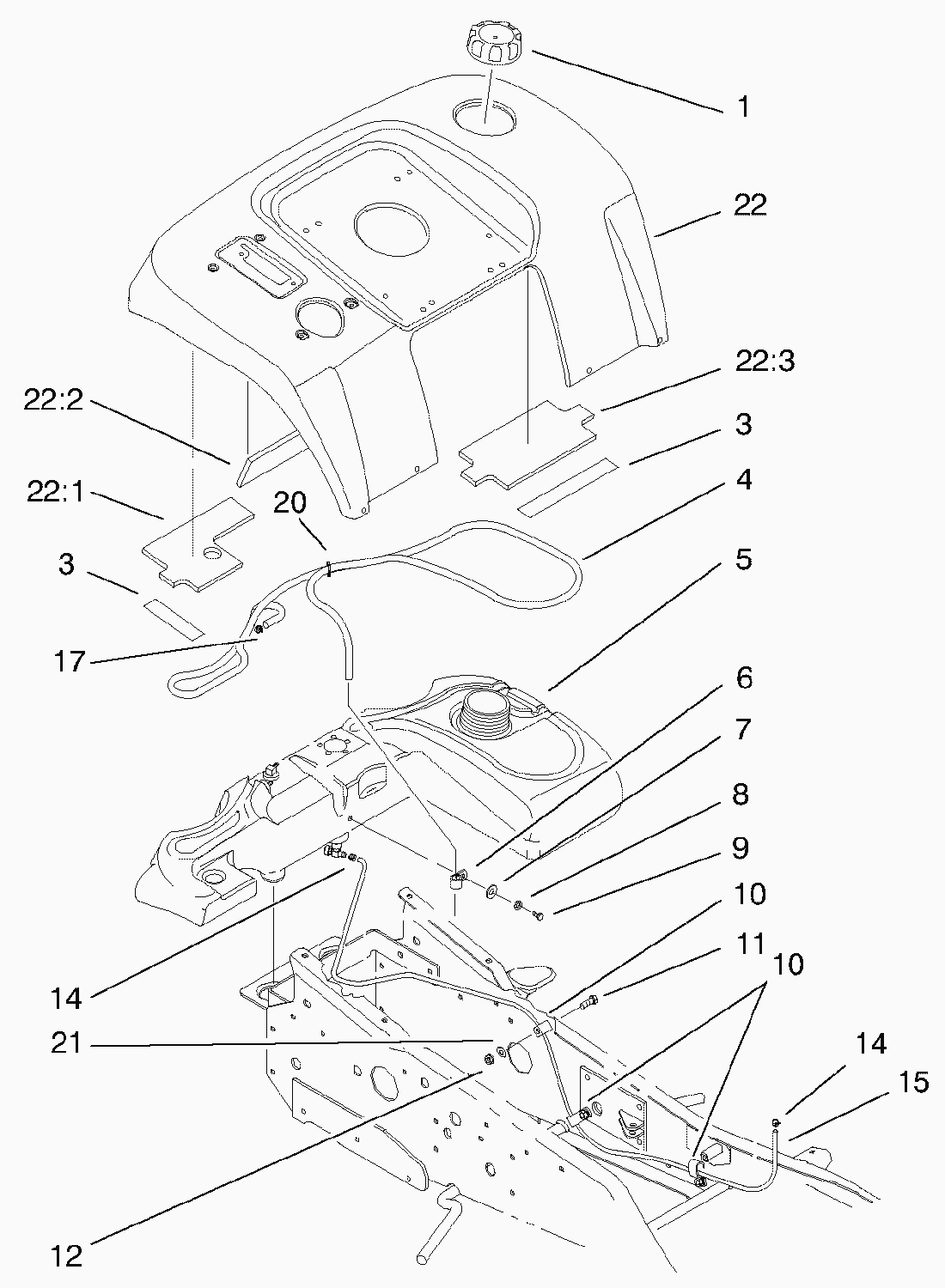

Lista de repuestos para Toro Roth / TORO Fender and Fuel System Assy.

pos.	descripción	Número de pieza
1	Gas Cap ASM-Unleaded	95-4192
3
4	Hose-Vent	95-4186
5	Tank-Gas	95-3809
51	Fitting Orifice	98-3050
52	Bushing	104047
53	Fitting-Fuel Shut Off	99-3716
54	Clamp	2412-36
55	Sender-Fuel level	95-3971
56	Gasket-Fuel Sender	99-2326
57	Screw	3250-31
58	Washer-Lock	3253-17
59	Fitting	95-3968
510	Gage	98-7390
6	R-Clamp	2412-94
7	Washer	3256-22
8	Lockwasher	3253-3
9	SCHRAUBE	321-3
10	Clamp-Tube	98-1616
11	Capscrew	323-6
12	Locknut	3296-39
14	Clamp-Hose	95-4271
15	Hose-Fuel	95-4272
17	Clamp-Hose	94-8189
20	Tie Strap	614249
21	Flat Washer	3256-24
22	Rear Body ASM	98-7208
221	Foam-Tank LH	95-4159
222	Foam-Tank RH	95-4158
223	Foam-Tank Center	95-4157
