> Roth / TORO > Ride-On Mowers > Traktor > 520 xi > 520/73541 > 8900001 > Dash Assy.

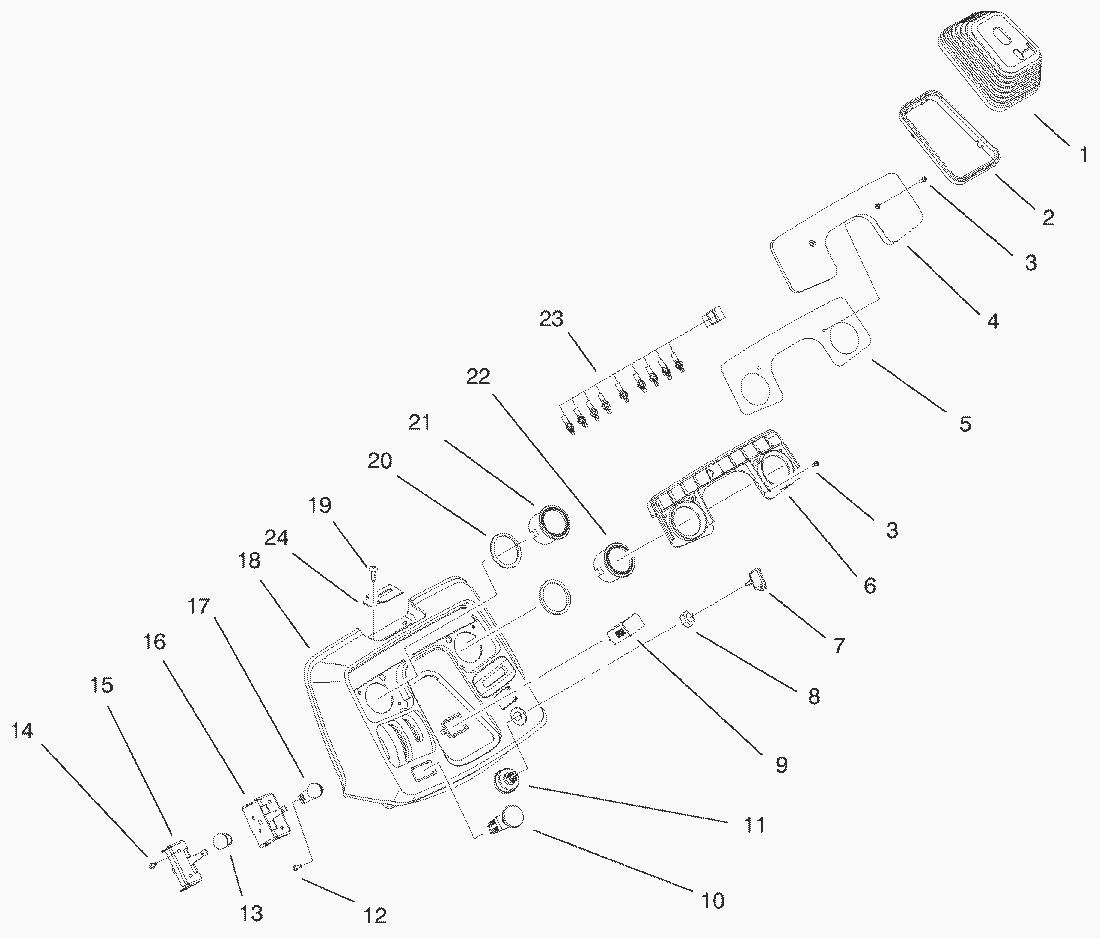

Lista de repuestos para Toro Roth / TORO Dash Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Boot-Steering94-2102
2Retainer-Boot95-3844
3Screw-Pan Hd95-4234
4Lens-Dash95-3842
5Decal-Dash Lens (Only On: 73470)95-4071
5Decal-Dash Lens (Only On: 73540, 73541)95-4072
6Housing-Light95-3843
7Key-Switch62-7770
8Nut700919
9Hourmeter94-4208
10Switch-PTO95-7489
11Switch INC 12 & 3092-6785
12Tscrew-PPH95-4236
13Knob-Throttle94-2121
14Screw-Plastite32144-32
15Control Throttle ASM95-4036
16Control Choke ASM95-4035
17Knob-Choke94-2122
18Dash94-2101
19Screw-TTH92-7020
20Gasket-Foam95-4238
21Gauge-Oil Temperature94-7616
22Gauge-Fuel95-3830
23Harness-4 Light (Only On: 73470)94-7607
23Harness-6 Light (Only On: 73540, 73541)94-7608
24Guard-Latch (Only On: 73541)95-4287
