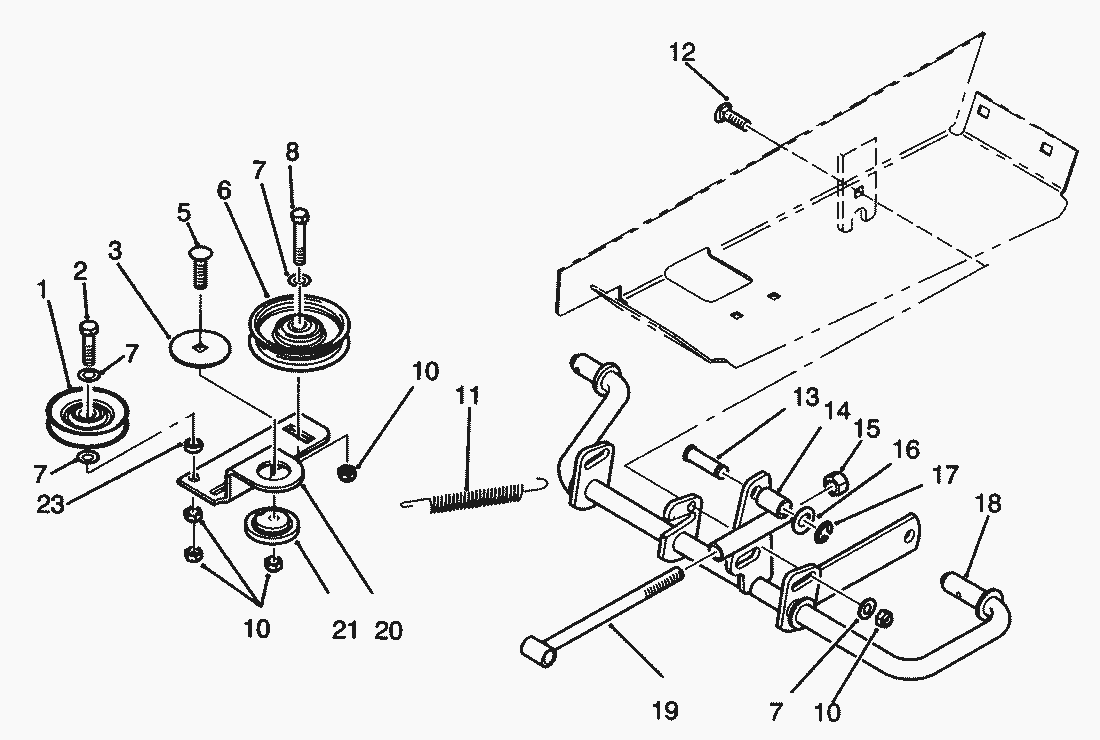

Lista de repuestos para Toro Roth / TORO Idler and Pedal Shaft Assy.

pos.	descripción	Número de pieza
1	Pulley-Idler	1623
2	Capscrew	323-8
3	Washer	111419
5	Bolt-Carriage	3231-4
6	Pulley-Flat Idler	112425
7	Flat Washer	3256-24
8	Capscrew	323-10
10	Nut-Lock	3296-23
11	Spring-Extension	79-7530
12	Carriage Bolt	3231-25
13	Pin	79-1250
14	Link-Assembly	78-7390
15	Nut-Lock	3296-23
16	Washer	3256-26
17	Ring-External Retaining	32120-47
18	Shaft-Assembly	79-3401
19	Rod-Assembly	78-7360
20	Arm-Idler	78-6771
21	Bushing-Eccentric	111418
23	Spacer	104525
