Brake Pedal Assy.

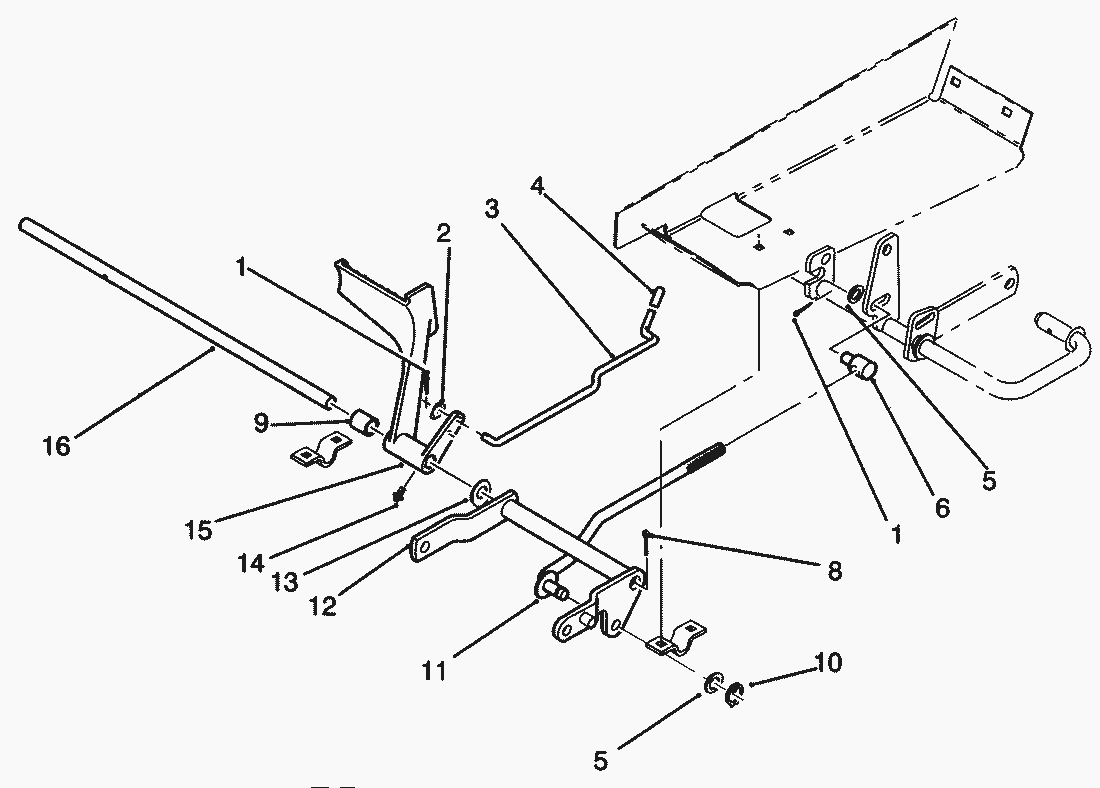

Lista de repuestos para Toro Roth / TORO Brake Pedal Assy.
pos.
descripción
Número de pieza
1
Cotter Pin
3272-6
2
Washer
3256-23
3
Rod-Brake, Parking
78-6120
4
Grip
111439
5
Washer
3256-26
6
Trunnion
8870
8
Pin-Cotter
3272-16
9
Spacer
110015
10
Ring-External Retaining
32120-47
11
Rod
78-2431
12
Arm
78-2111
13
Washer
920215
14
Grease Fitting
302-5
15
Pedal-Brake
117234
16
Shaft-Pedal
78-6831
