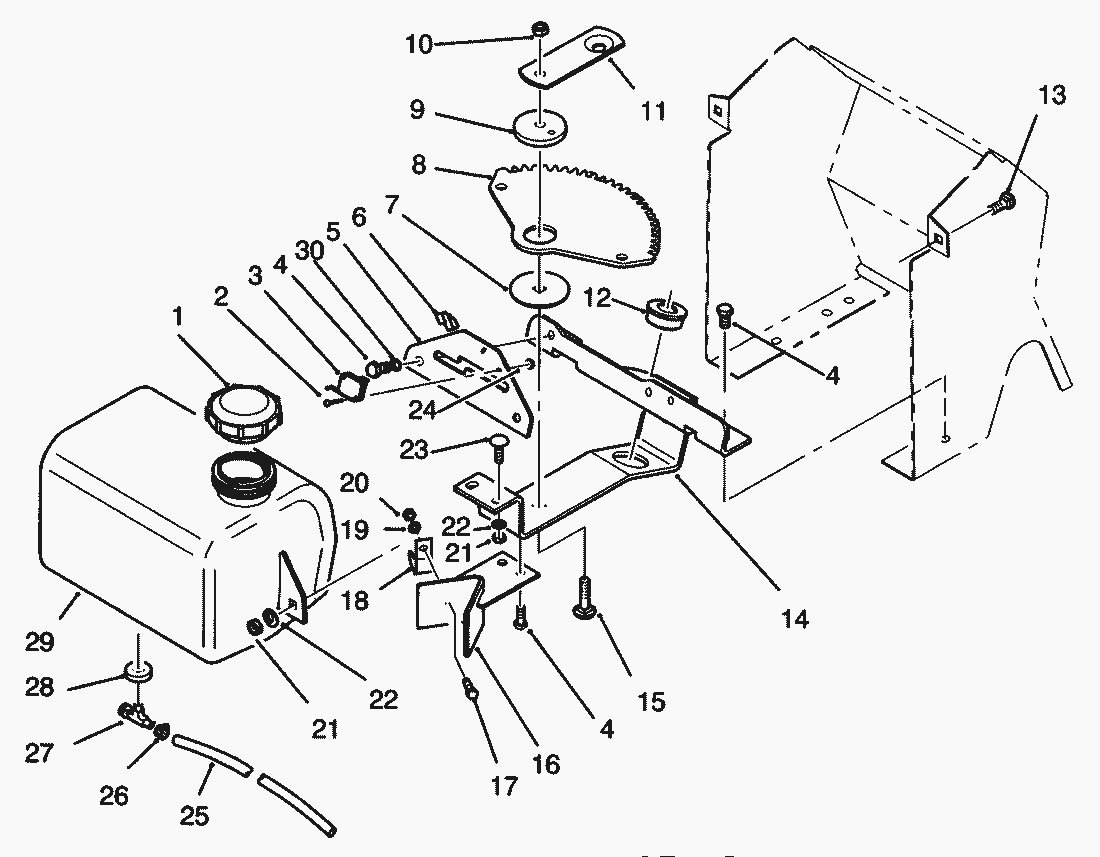

Lista de repuestos para Toro Roth / TORO Fuel Tank and Steering Bracket Assy.

pos.	descripción	Número de pieza
1	Cap-Gas	111474
2	Screw	910948
3	Swtich-Clutch	115230
4	S.W. Form Screw	926720
5	Plate	78-2566
6	Clip	519337
7	Washer	111419
8	Sector-Gear	78-2610
9	Bushing-Eccentric	111418
10	Nut	108886
11	Plate	78-9190
12	Bushing	110391
13	Screw-Carriage	3230-23
14	Bracket-Steering	78-1193
15	Carriage Bolt	3231-25
16	Stop	78-2491
17	Bolt	908003
18	Clip	8830
19	Washer	920007
20	MUTTER	3296-42
21	MUTTER	3296-29
22	Washer	3256-23
23	Bolt-Carriage	9002159
24	Nut-Lock	915732
25	Hose-Fuel Line	79-7070
26	Clamp-Hose	2412-98
27	Valve	104048
28	Bushing	104047
29	Fuel Tank Assembly (Incl. Ref.	112153
