> Roth / TORO > Ride-On Mowers > Traktor > 212-H > 303/R2-12OE02 > 2000001 > Sweeper P.T.O. Assy. (212-H)

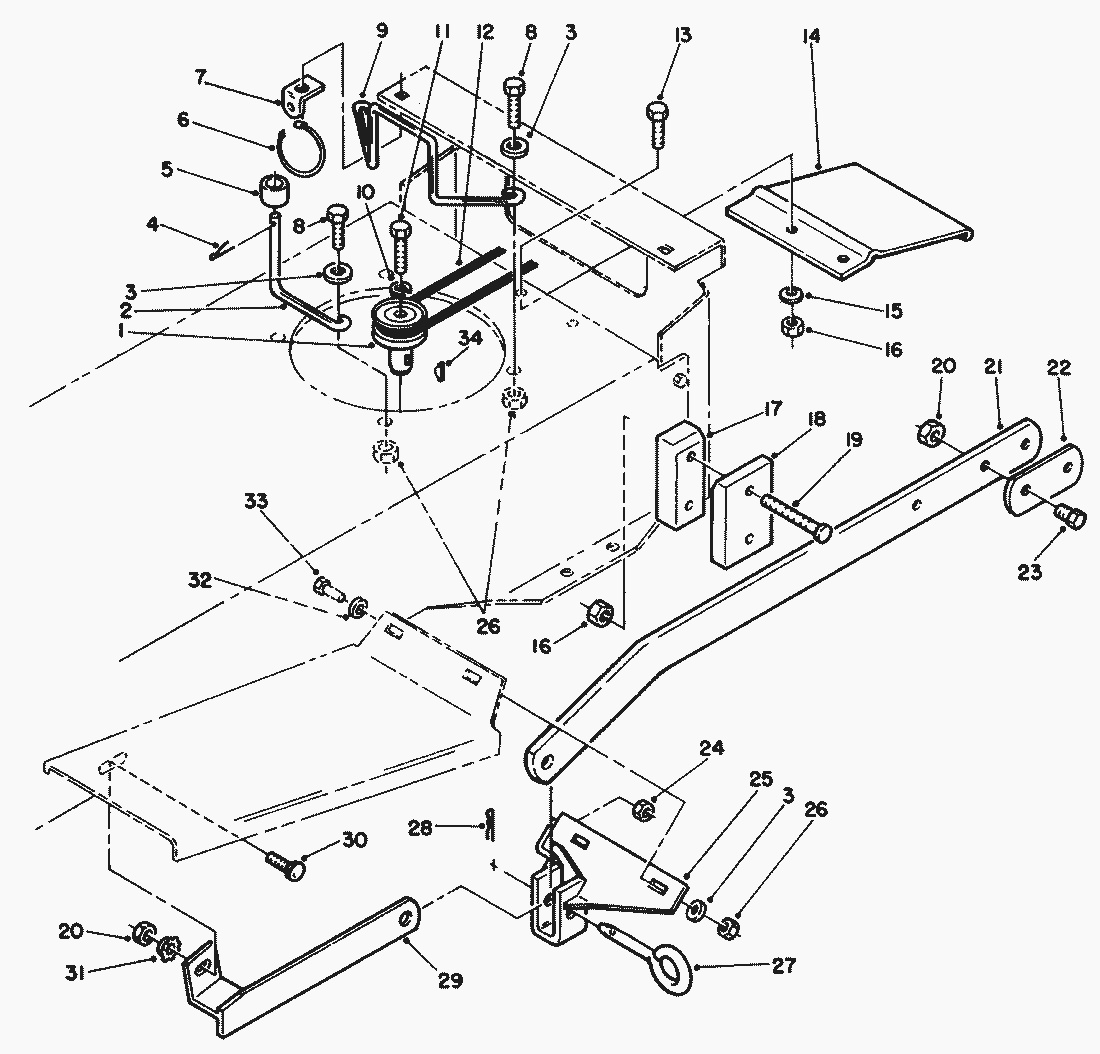

Lista de repuestos para Toro Roth / TORO Sweeper P.T.O. Assy. (212-H)




Lista de repuestos


pos.descripciónNúmero de pieza
1Pulley-Drive115686
2Guide-Belt115991
3Washer3256-23
4Pin-Cotter3272-2
5Spacer114812
6Tie-Plastic113589
7Clip-Spring2534
8Hex Hd. Capscrew322-5
9Guide-Belt115990
10Lockwasher3253-3
11Screw-Cap Hex. Hd.908011
12Belt-V115968
13Capscrew321-4
14Shoe-Belt116005
15Washer3256-22
16MUTTER3296-42
17Spacer-Rubber114762
18Block-Rubber114756
19Screw-Pan Hd.910842
20Locknut3296-39
21Bar-Pivot116784
22Spacer114757
23Screw-Cap Hex Hd.323-7
24Eslok Nut915112
25Bracket-L.H.114723
Bracket-R.H.114724
26MUTTER3296-29
27Tool Pin106634
28Cotter-Hairpin933505
29Brace-L.H.117389
Brace-R.H.117390
30Carriage Bolt3231-25
31Washer1336
32Washer-Special920267
33Capscrew322-3
34Key-Hi-Pro937222
