> Roth / TORO > Ride-On Mowers > Traktor > 212-H > 303/R2-12OE02 > 2000001 > Body Assy.

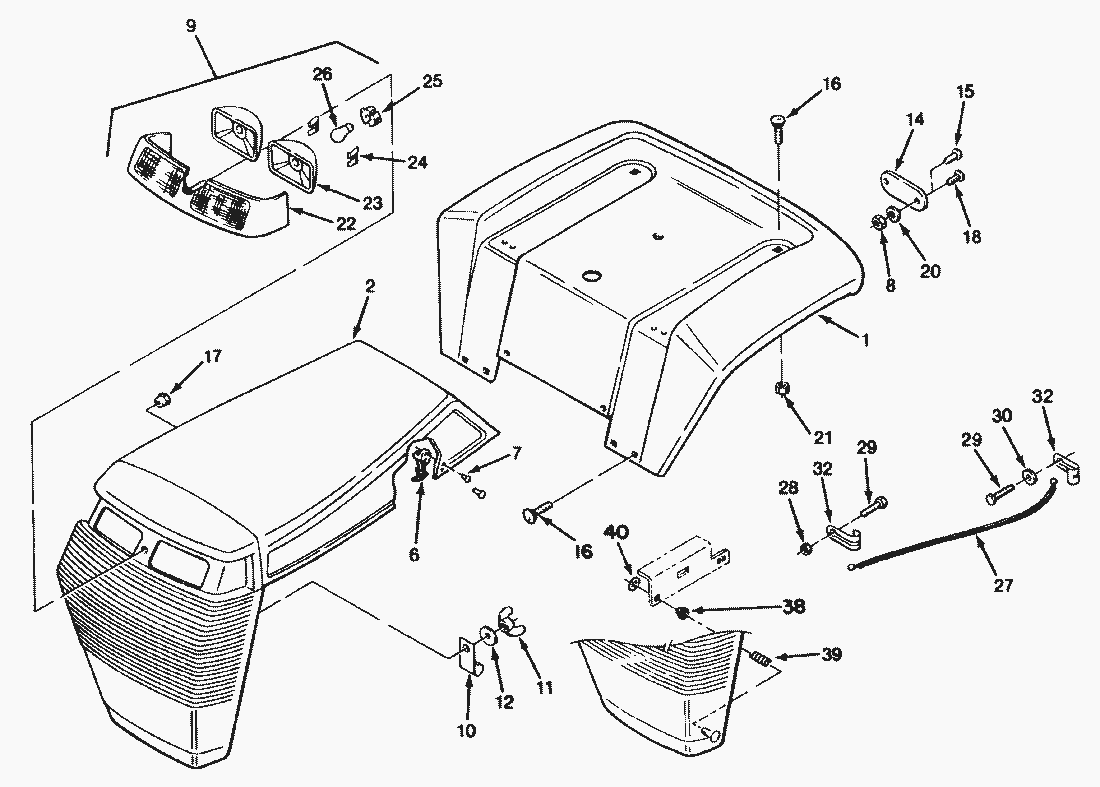

Lista de repuestos para Toro Roth / TORO Body Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Fender114389
2Hood & Grill79-3840
6Handle w/Bracket (109237)117344
7Pop Rivet117432
8Hex Nut3219-14
9Head Light Bar (Includes Ref.116591
10Clip-J111392
11Nut-Wing32103-19
12Special Washer103995
14Reflector108547
15Poprivet109193
16Screw-Carriage3230-23
17Bushing938031
18Screw910808
20Washer-Lock3253-17
21Hex Nut3217-6
22Light Bar116601
23Light Pods111684
24Light Retainers111685
25Light Sockets116262
26Light Bulb7228
27Hood Lanyard Cable115414
28Nut-Hex915740
29Machine Hd. Screw913111
30Washer-Backing112925
32Clevis115413
38Bushing-Nyliner5977
39Spring111536
40Push Nut79-2590
