> Roth / TORO > Ride-On Mowers > Traktor > 212-H > 303/R2-12OE02 > 2000001 > 12HP Engine Carburetor Assy.

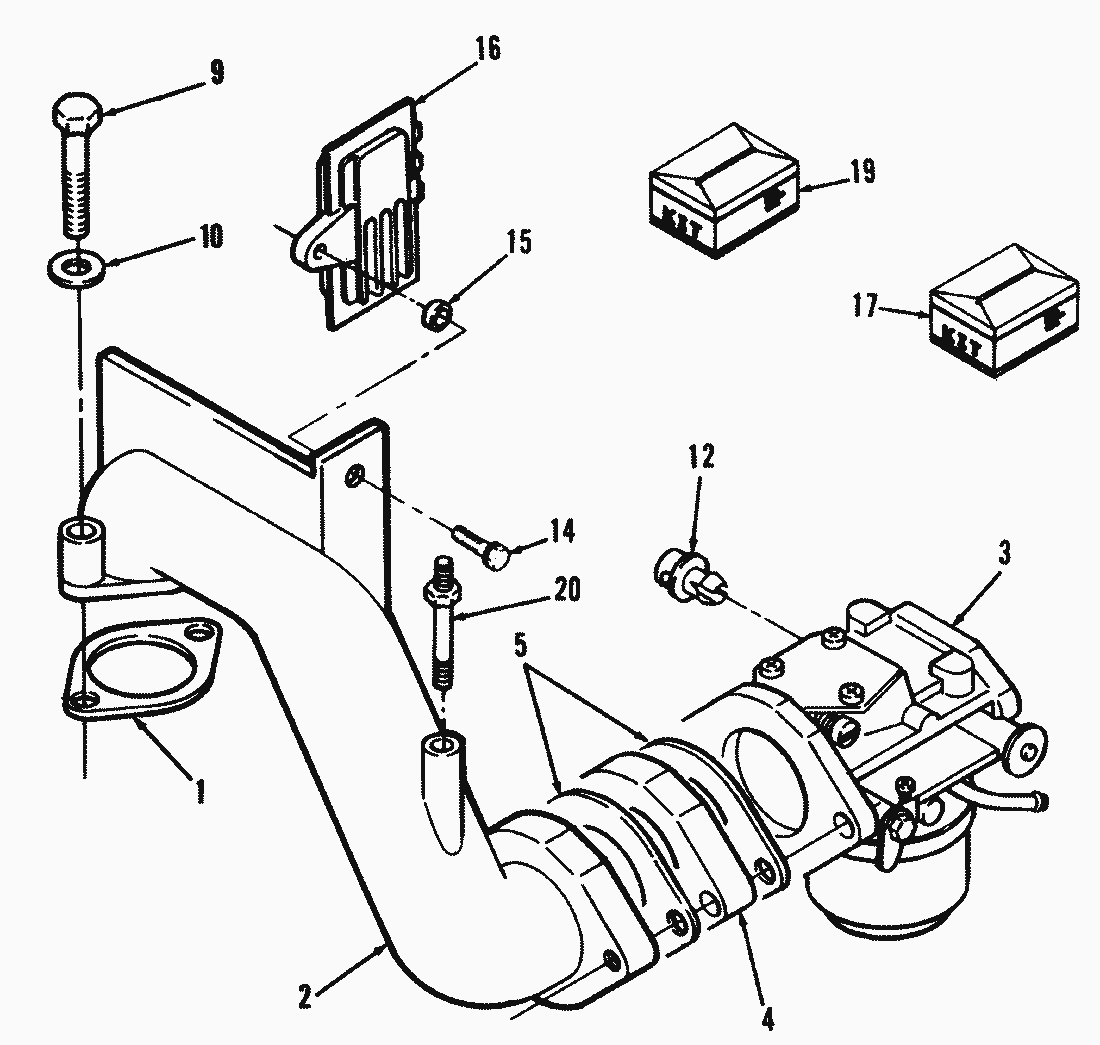

Lista de repuestos para Toro Roth / TORO 12HP Engine Carburetor Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1GasketNN10666
2Elbow-IntakeNN10667
3Carburetor AssemblyNN10668
4InsulatorNN10669
5GasketNN10670
9Screw-Cap Hex. Hd.79-5820
10Washer-Flat79-5830
12Clip-LinkNN10674
14Screw-Hex. Washer Hd.NN10371
15Bushing57-9120
16Regulator-Voltage57-9430
17Kit-FloatNN10906
19Kit-Carburetor RepairNN10907
20StudNN10701
