> Roth / TORO > Ride-On Mowers > Traktor > 212-H > 303/R2-12OE02 > 2000001 > Electrical System Assy.

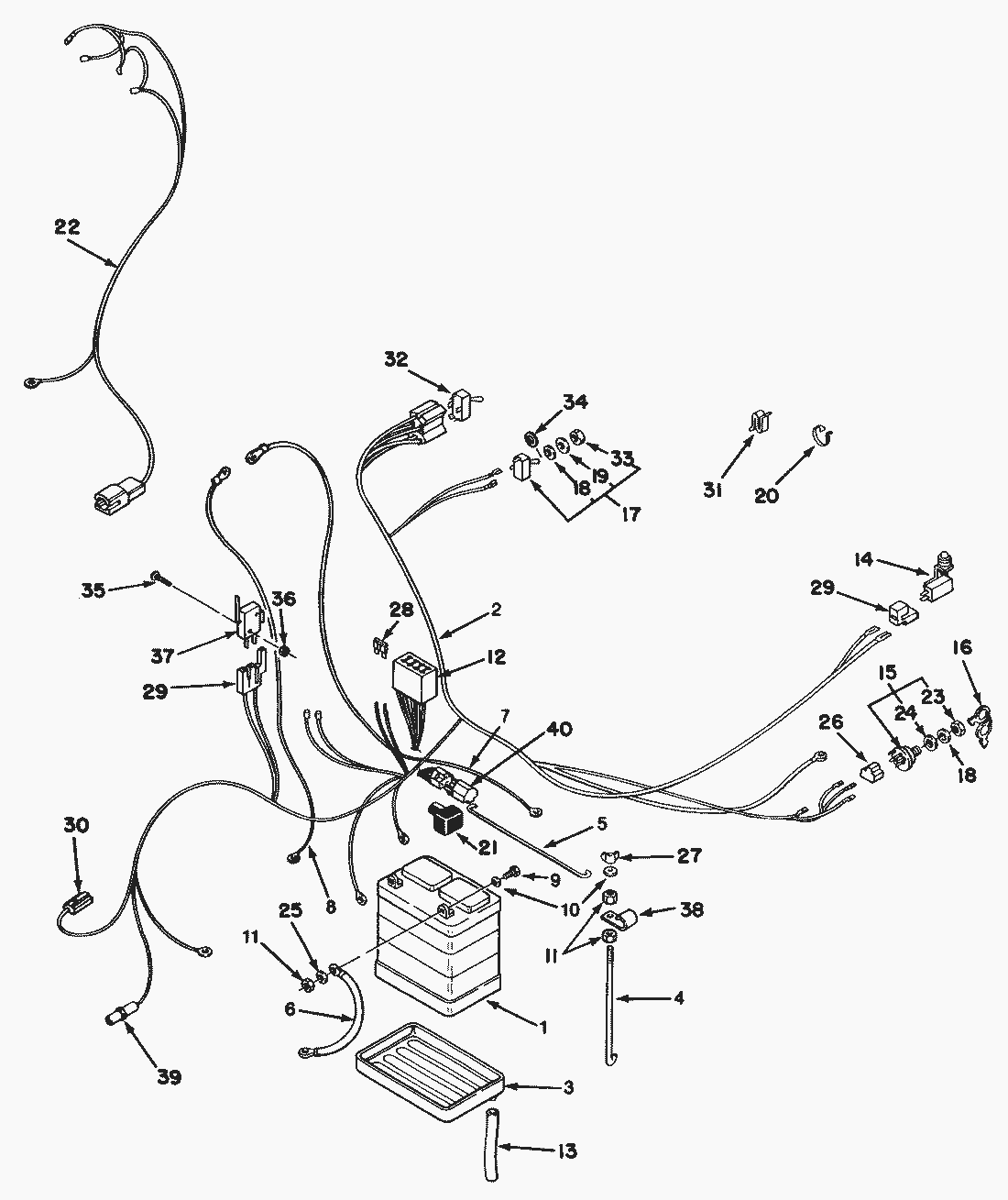

Lista de repuestos para Toro Roth / TORO Electrical System Assy.




pos.descripciónNúmero de pieza
79-3920
Lista de repuestos


pos.descripciónNúmero de pieza
1Battery104962
Battery (212-H)105842
3Tray-Battery106948
4Hook109547
5Hold-Down-Battery117316
6Wire-Solenoid/Battery111076
7Wire-Solenoid/Battery111076
8Wire-Solenoid/Starter112757
9Capscrew321-4
10Washer3256-22
11Nut-Hex3217-5
12Holder-Fuse120930
13Tube-Drain114721
14Switch-Seat38-1420
15Switch-Ignition (Incl. Ref.116338
16Key-Ignition116738
17Switch-Light (Incl. Ref.102138
18Washer-Special920262
19Washer-Special920259
20Cable Tie100571
21Cover-Battery Terminal109553
22Harness-Headlight115204
23Nut-Switch101884
24Washer-Lock920160
25Lockwasher3253-3
26Connector-5 Terminal105302
27Nut-Wing32103-22
28Fuse-15 Amp.109355
Fuse-25 Amp.109102
Fuse-30 Amp.NN10277
29Body-Connector111498
30Body-Connector104926
31Clip3023
32Switch-PTO78-3030
33Nut-Hex.113179
34Washer-Tab102950
35Screw910948
36Nut-Lock915732
37Swtich-Clutch115230
38Clamp105490
39Socket-Connector107831
40Relay116397
