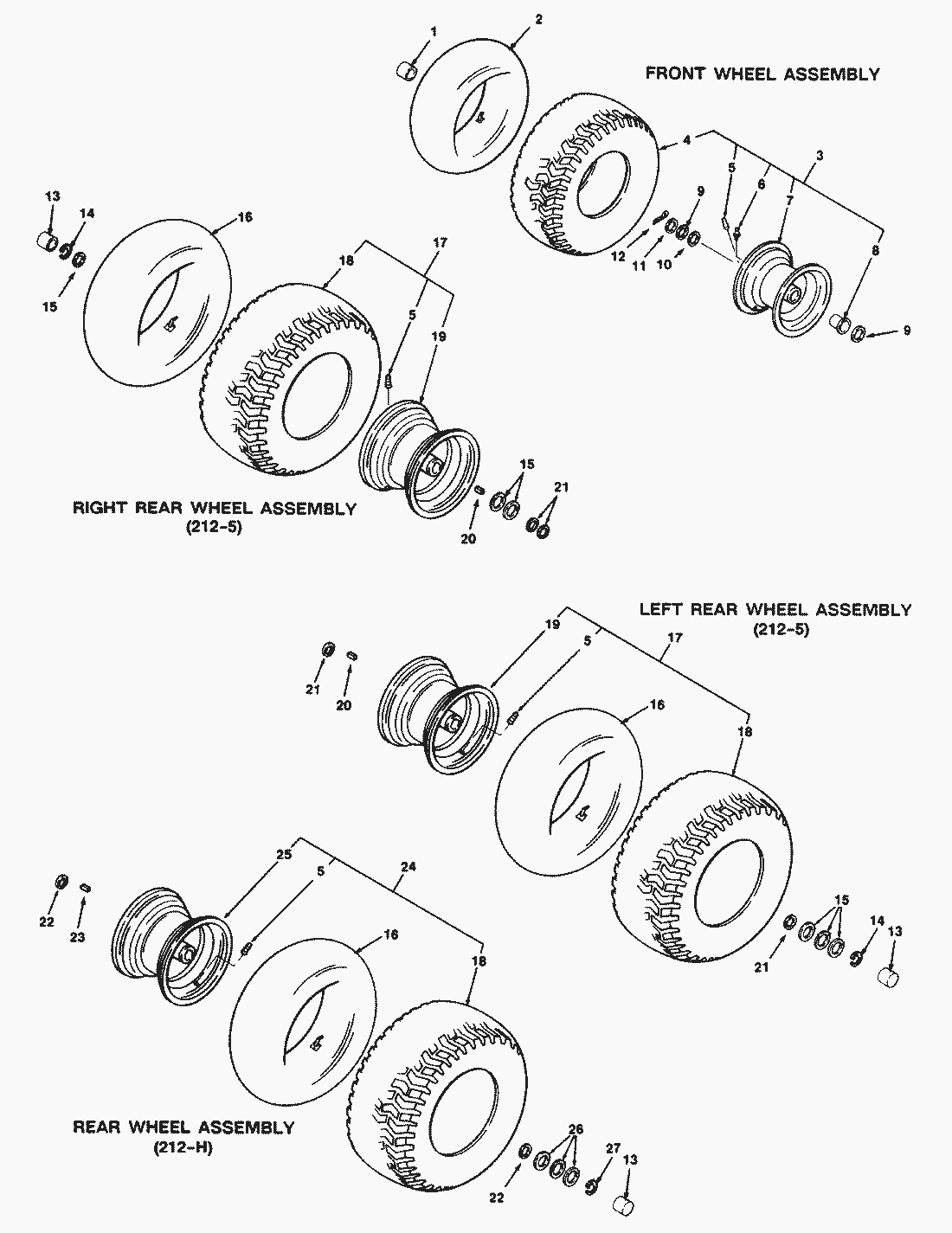

Lista de repuestos para Toro Roth / TORO Wheel & Tire Assy.

pos.	descripción	Número de pieza
1	Hubcap-Black, Rear	109154
2	Front Tube-Service Only	100079
4	Tire-Front	116884
5	Valve Stem	5108
6	Grease Fitting	109500
7	Front Wheel Assembly (Incl. Ref.	116885
8	Bearing	116887
9	Washer-Shim (.050)	1278
10	Washer-Shim (.015) * Not Illustrated	5210
11	Special Washer Hubcap	109262
12	Cotter Pin	3272-17
13	Hubcap-Black, Front	109261
14	E-Ring-External	32151-48
15	Special Washer Hubcap	109262
16	Rear Tube-Service Only	105450
18	Tire-Rear	116880
20	Square Key	1120
21	Washer-Shim (.050)	1278
22	Washer-.050	920251
23	Key-Square	5-1336
26	Washer-.075	120860
27	Snap Ring	32151-36
