volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
212-H
>
303/R2-12OE01
>
1000001
>

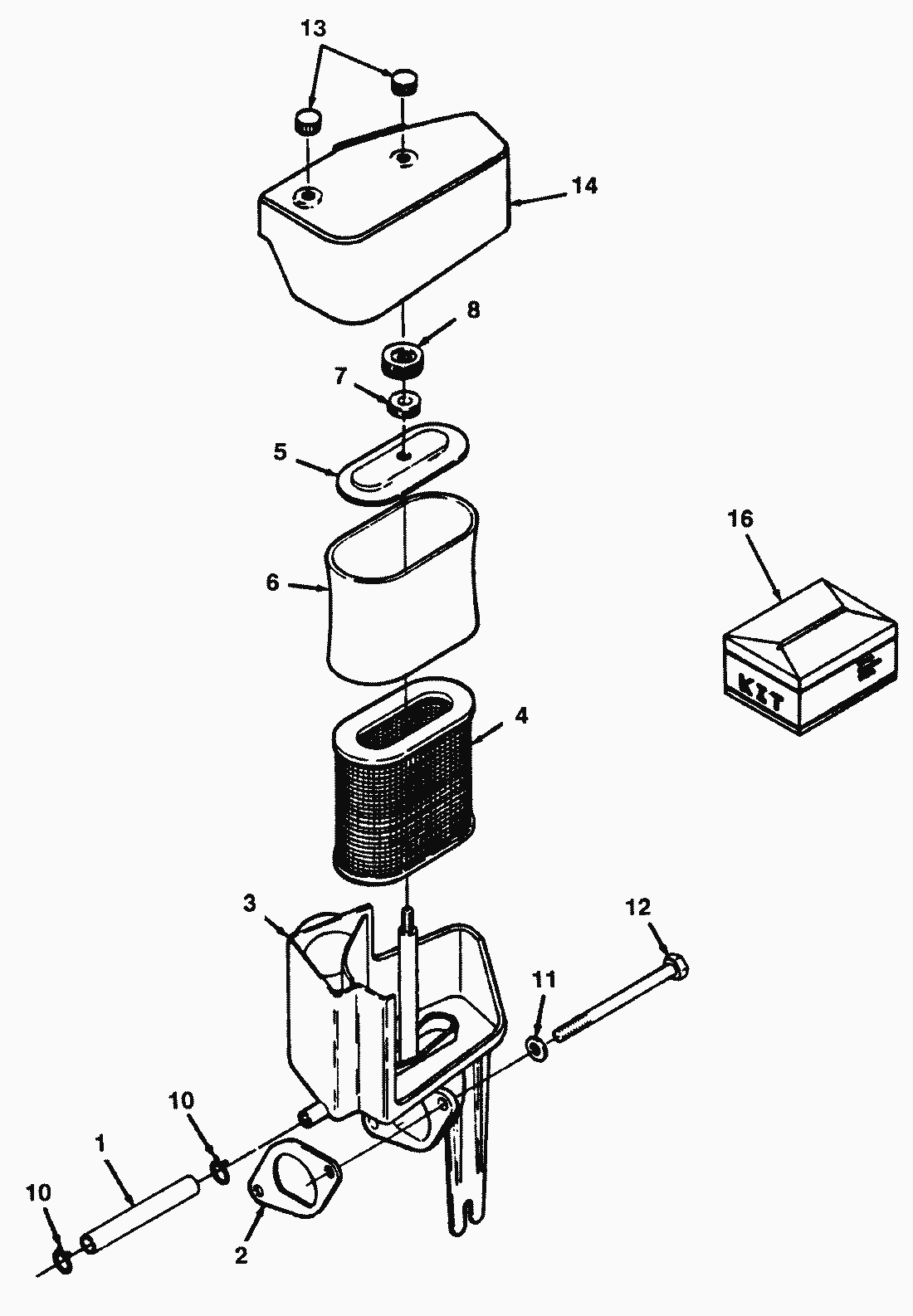

12HP Engine Air Cleaner Assy.
Lista de repuestos para Toro Roth / TORO 12HP Engine Air Cleaner Assy.
pos.
descripción
Número de pieza
79-5910
pos.
descripción
Número de pieza
1
Hose-Breather
NN10693
2
Gasket
NN10694
3
Adapter
NN10899
4
Element
NN10872
5
Cover-Element
NN10697
6
Wrapper-Element
NN10698
7
Grommet
NN10704
8
Knob
NN10703
10
Clamp-Hose
NN10812
11
Washer
82-1350
12
Screw-Cap Hex. Hd.
NN10702
13
Knob
NN10700
14
Cover-Air Cleaner
NN10799
