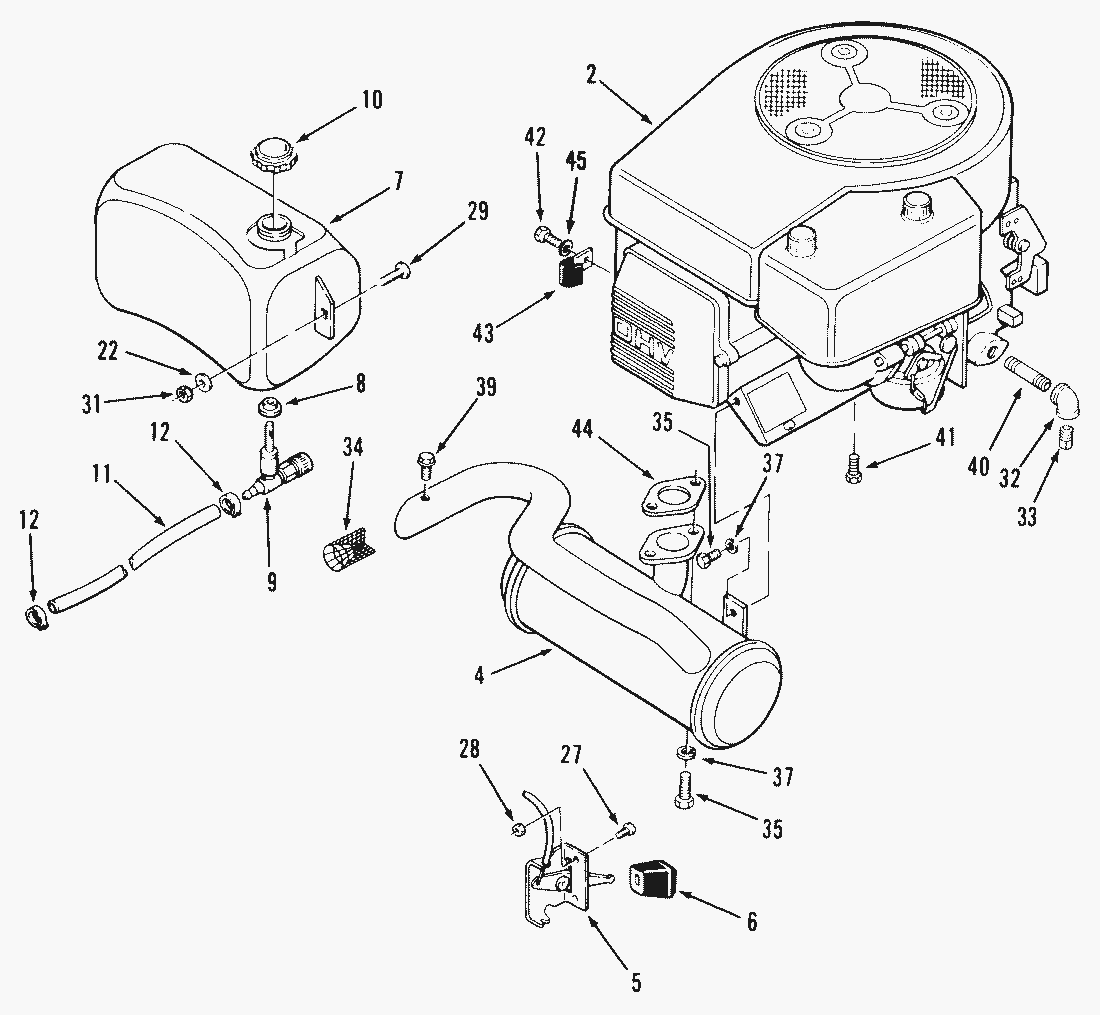

Lista de repuestos para Toro Roth / TORO Engine Fuel & Exhaust Assy.

pos.	descripción	Número de pieza
2	Engine-12HP TORO Power Plus Model No. E125V Type N/10964B	78-8550
4	Muffler	116702
5	Control-Throttle	117256
6	Knob	116454
7	Fuel Tank Assembly (Incl. Ref.	112153
8	Bushing	104047
9	Valve	104048
10	Cap-Gas	111474
11	Line-Fuel	117225
12	Clamp-Hose	2412-98
22	Washer	3256-23
27	Screw-Pan Hd.	111499
28	Nut-Hex	915740
29	Carriage Bolt	3230-1
31	MUTTER	3296-29
32	Fitting-90ø	114764
33	Plug-Pipe	NN10653
34	Spark Arrestor	115356
35	Screw-Hex. Hd.	113113
37	Lockwasher	3253-4
39	Screw	911652
40	Extension-Oil Drain	114636
41	Bolt	926696
42	Bolt	48-7630
43	Clip-J	111392
44	Gasket	117184
45	Lockwasher	3253-3
