> Roth / TORO > Ride-On Mowers > Traktor > 212-H > 303/R2-12OE01 > 1000001 > Decal & Misc. Parts Assy.

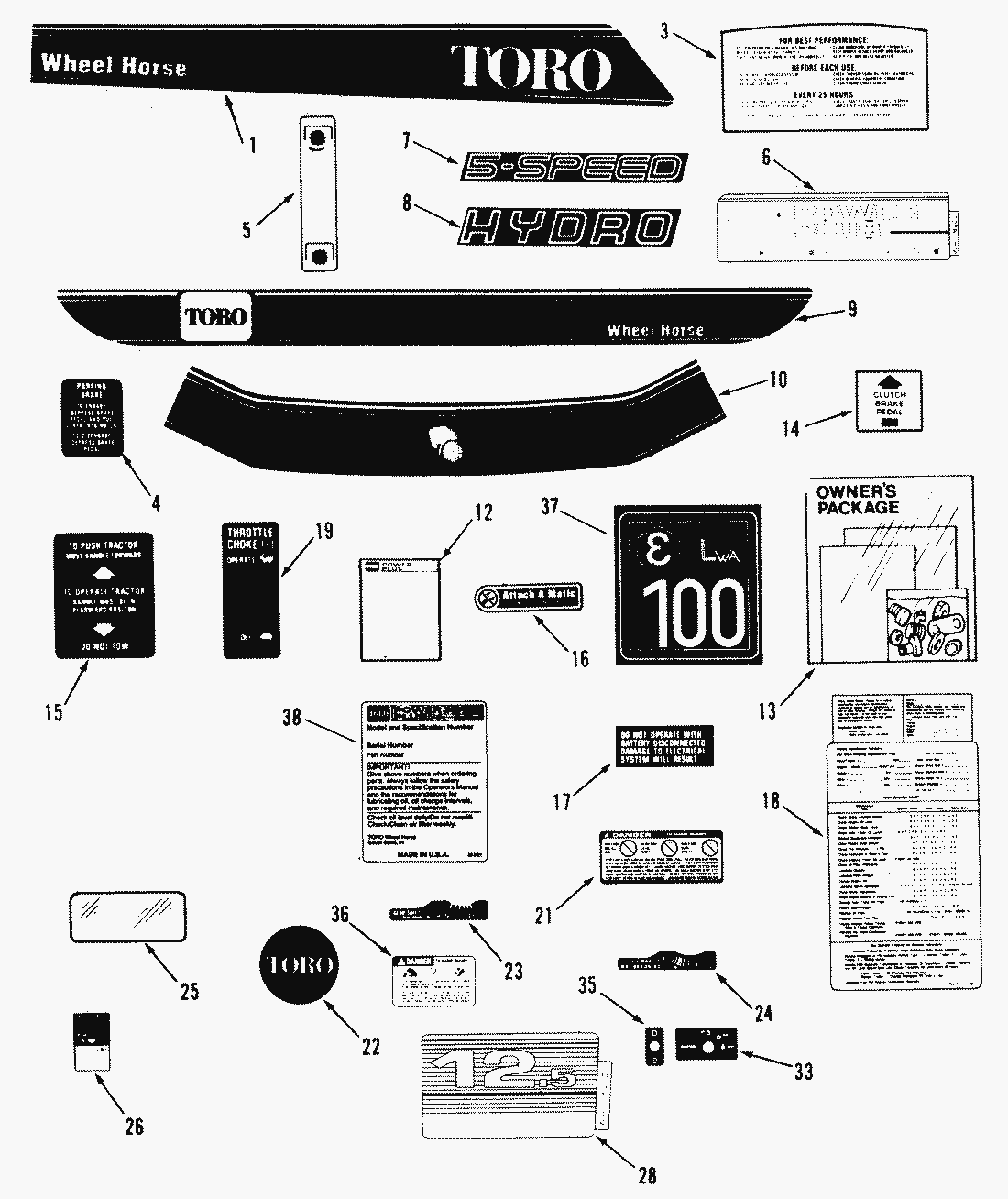

Lista de repuestos para Toro Roth / TORO Decal & Misc. Parts Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Decal-Hood R.H. (212-5)117474
Decal-Hood R.H. (212-H)117472
Decal-Hood L.H. (212-5)117475
Decal-Hood L.H. (212-H)117473
3Decal-Rear Hood116590
4Decal-Parking Brake111327
5Decal-PTO Clutch78-8440
6Decal-Power Plus118600
7Decal-5-Speed117512
8Decal-Hydro (212-H)117511
9Decal-Rear Fender117760
10Decal-Front Hood116874
Loose Parts Package (212-5)807322
Loose Parts Package (212-H)807323
14Decal-Clutch & Brake111632
15Decal-Hydro Push (212-H)114442
16Decal-Attach-a-Matic115196
17Decal-Electrical System111926
18Decal-Maintenance115398
19Decal-Throttle111706
21Decal-Danger112670
22Decal-TORO120040
23Decal-Shift 5-Speed114944
24Decal-Motion Control (212-H)114051
25Decal-Vin Overlay112403
26Decal-PTO Adjustment113370
28Decal-Power Plus118610
33Decal-Ignition78-8480
35Decal-Lights78-8490
37Decal-Europe Noise114621
38Decal-Engine Spec.117800
