> Roth / TORO > Ride-On Mowers > Traktor > 212-H > 303/R2-12OE01 > 1000001 > Electrical System Assy.

Lista de repuestos para Toro Roth / TORO Electrical System Assy.




pos.descripciónNúmero de pieza
79-0500

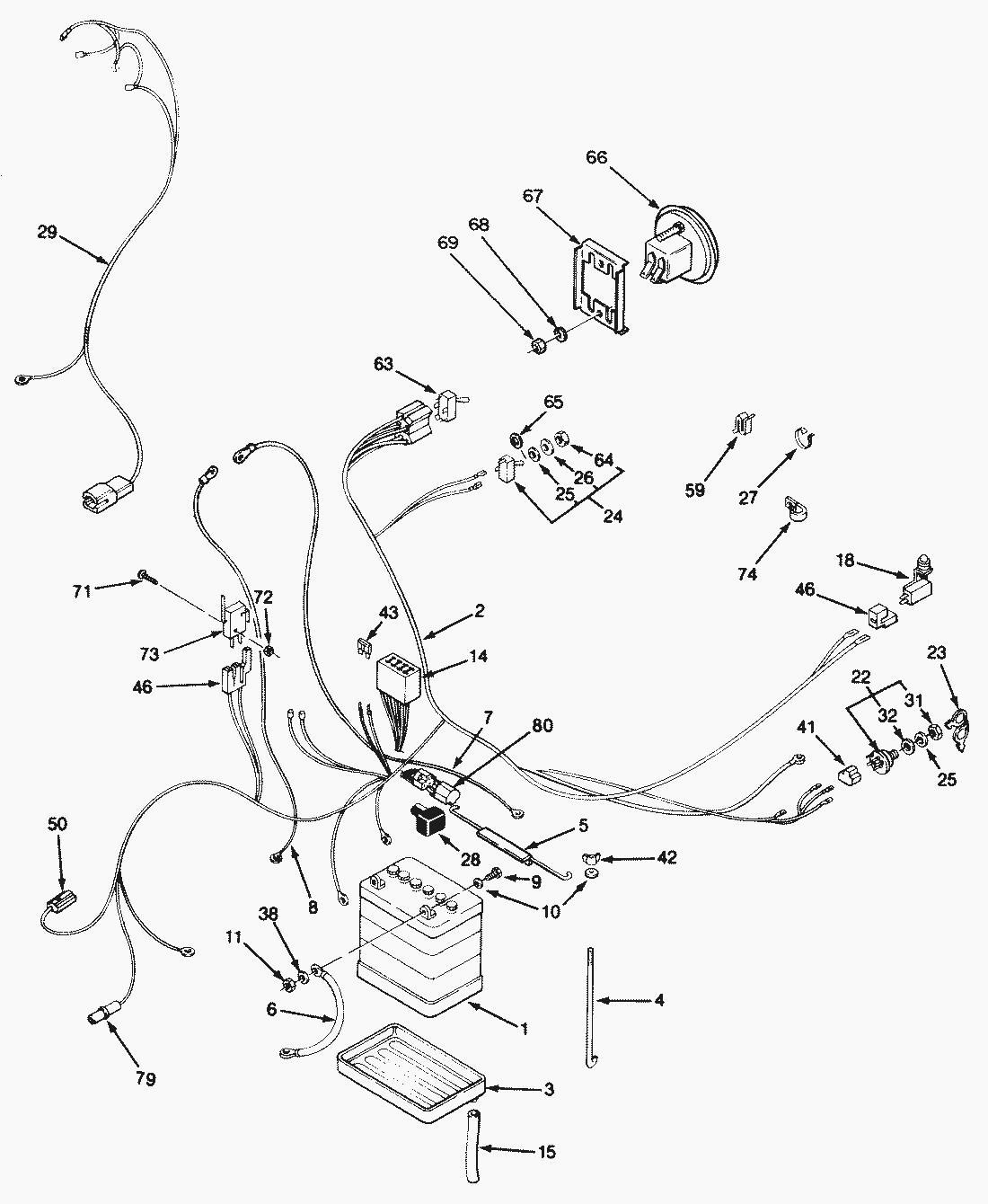

Lista de repuestos


pos.descripciónNúmero de pieza
1Battery104962
Battery (212-H)105842
3Tray-Battery106948
4Hook109547
5Hold-Down-Battery117316
7Wire-Solenoid/Battery111076
8Wire-Solenoid/Starter112757
9Capscrew321-4
10Washer3256-22
11Nut-Hex3217-5
14Holder-Fuse120930
15Tube-Drain114721
18Switch-Seat38-1420
22Switch-Ignition (Incl. Ref.116338
23Key-Ignition116738
24Switch-Light (Incl. Ref.102138
25Washer-Special920262
26Washer-Special920259
27Cable Tie100571
28Cover-Battery Terminal109553
29Harness-Headlight115204
31Nut-Switch101884
32Washer-Lock920160
38Lockwasher3253-3
41Connector-5 Terminal105302
42Nut-Wing32103-22
43Fuse-15 Amp.109355
Fuse-25 Amp.109102
Fuse-30 Amp.NN10277
46Body-Connector111498
50Body-Connector104926
59Clip3023
63Switch-PTO78-3030
64Nut-Hex.113179
65Washer-Tab102950
66Hourmeter78-0020
67Clamp-Hourmeter78-3320
68Washer-Lock3253-15
69Nut-Hex.915564
71Screw910948
72Nut-Lock915732
73Swtich-Clutch115230
74Clamp105490
79Socket-Connector107831
80Relay116397
