volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
16-44 HXL
>
393/71218
>
6900001
>

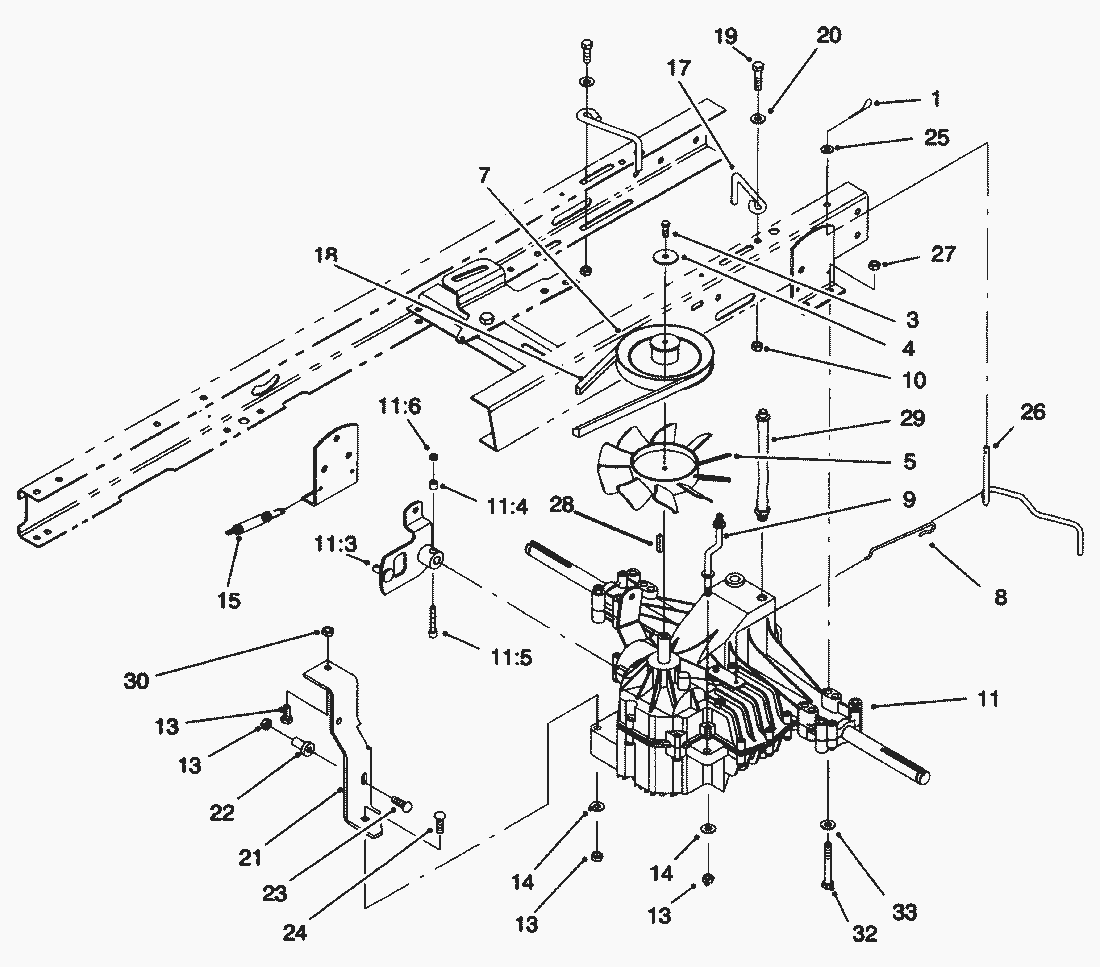

Transaxle Assy.
Lista de repuestos para Toro Roth / TORO Transaxle Assy.
pos.
descripción
Número de pieza
1
Hair Pin Cotter
3290-307
3
Screw-Hex Hd. Cap
48-7620
4
Washer-Fender
3256-58
5
Fan-Hydro
93-3867
7
Pulley-Transmission
93-3862
8
Wire-Bypass
92-8856
9
Strap-Torque
93-3872
10
MUTTER
3296-29
11
Transaxle Asm-Hydro
94-6946
113
Lever Asm-Speed Control
93-3870
114
Spacer-Lock
86-4270
115
Screw-Hex Hd. Cap
3274-59
116
Locknut
3296-12
13
MUTTER
3296-29
14
Washer
3256-23
15
Spring-Brake Return
26-6701
16
Capscrew
322-3
17
Guide-Trans. Belt
93-3868
18
V-Belt-Hydro
93-3883
19
Hex Hd. Capscrew
322-5
20
Washer
5-4460
21
Bracket-Speed Control
93-3863
22
Bushing-Flanged
65-5080
23
Bolt-Carriage
3230-5
24
Bolt-Carriage
3230-7
25
Washer
3256-22
26
Lever-Bypass
92-8857
27
MUTTER
3296-29
28
Key-Square
80-6090
29
Hose-Breather
94-1945
32
Screw-Cap Hex. Hd.
322-12
33
Washer
3256-23
