> Roth / TORO > Ride-On Mowers > Traktor > 16-44 HXL > 393/71218 > 6900001 > Electrical Assy.

Lista de repuestos para Toro Roth / TORO Electrical Assy.




pos.descripciónNúmero de pieza
Reflector & Lamp88-3970

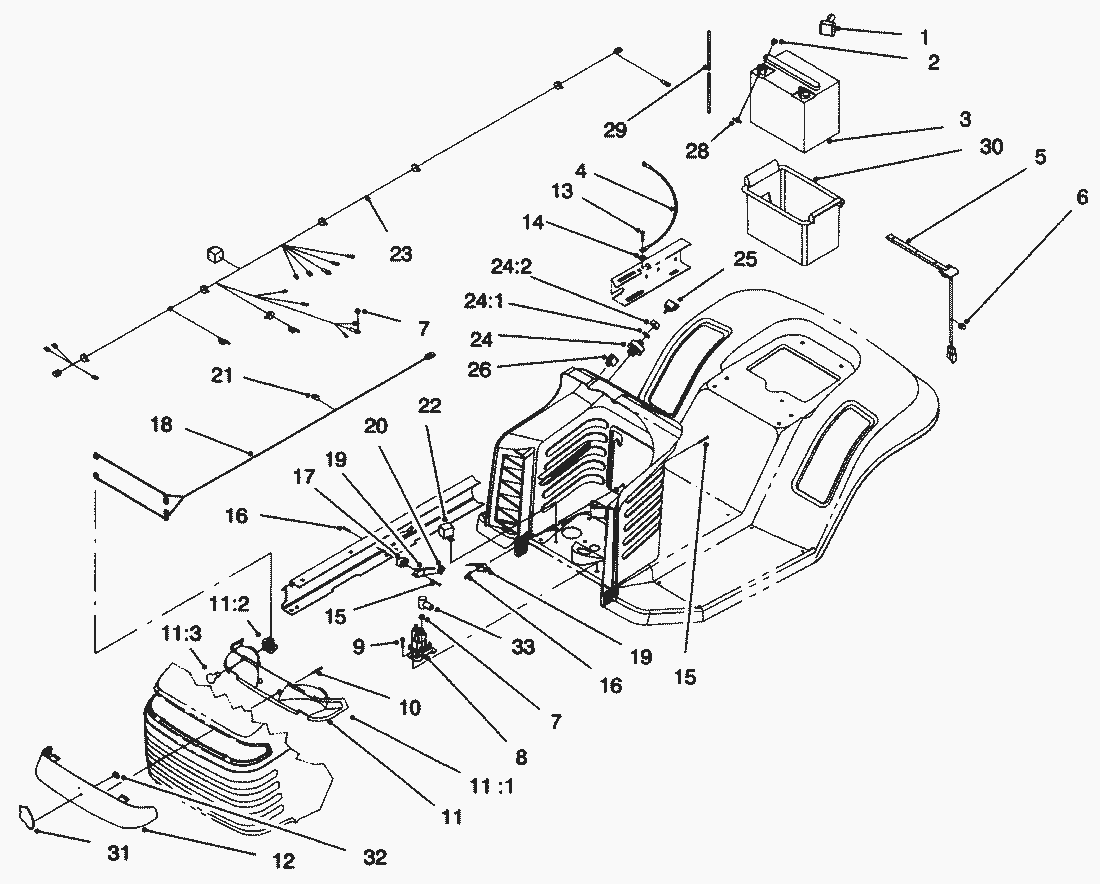

Lista de repuestos


pos.descripciónNúmero de pieza
1Boot-Battery Terminal28-8080
2Capscrew321-4
3Battery-7 Plate80-2600
4Cable-Battery Negative44-8110
5Switch-Seat38-1420
6Clip-Wire Retainer702366
7Locknut32149-2
8Solenoid-12 Volt (Only On: 72043, 72042, 72063, 72062)92-9845
9Screw Thread Forming32144-4
10Screw-Plastite32144-32
111Reflector-Headlight93-8741
112Socket Assembly111686
113Light Bulb7228
12Lens-Headlights88-3960
13Screw Thread Forming32144-4
14Lockwasher3255-7
15Screw (Only On: 72103)93-0539
16Speed Nut3290-354
17Spacer-Microswitch88-4880
18Harness-Wire88-4320
19Switch-Micro88-9932
20Seal-Plunger93-3240
21Clip-Wire Retainer702366
22Relay116397
23Harness-Wire93-3810
24Switch-Ignition88-9830
241Lockwasher3254-5
242Hex Nut218-461
25Key-Ignition63-8360
26Switch-Rocker92-8875
28Nut-Wing32103-22
29Vent-Tube56-2540
30Box-Battery88-4040
31Plate-Grille Panel80-2240
32Nut-Tinnerman3290-299
33Boot-Terminal Insulator94-5362
