> Roth / TORO > Ride-On Mowers > Traktor > 16-44 HXL > 393/71218 > 6900001 > HOC Assy.

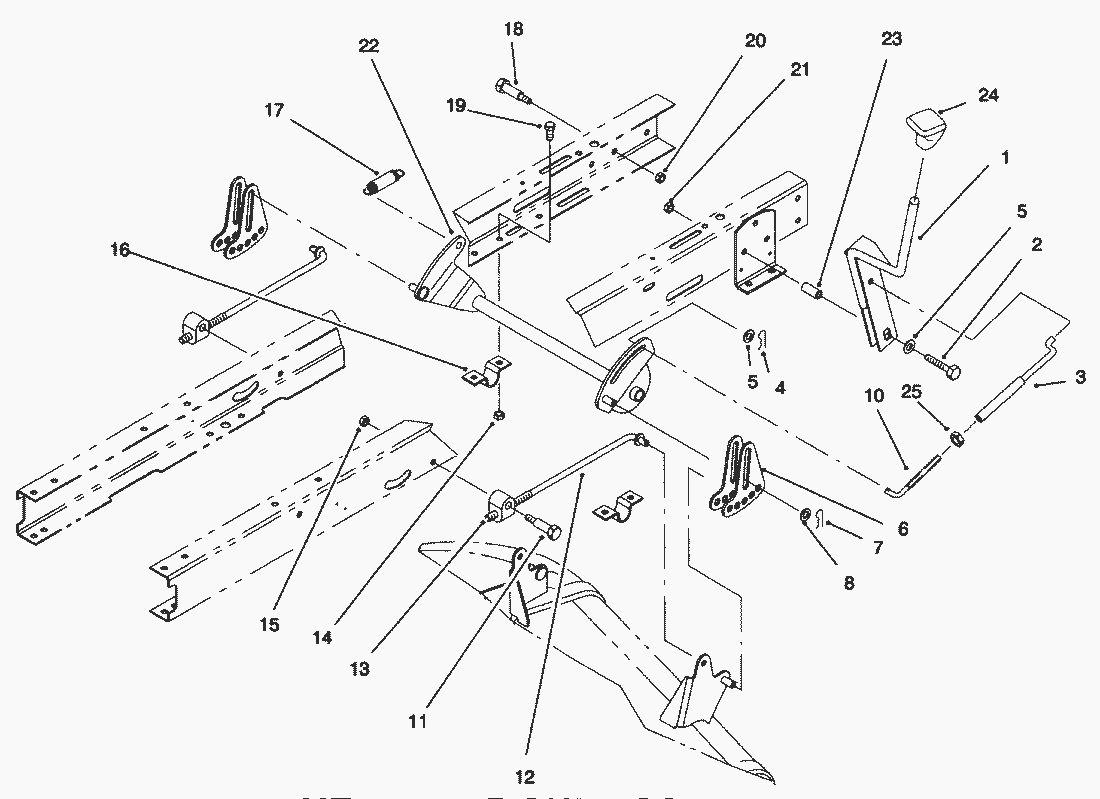

Lista de repuestos para Toro Roth / TORO HOC Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Lever-H.O.C.93-3822
2Capscrew322-9
3Tube93-3885
4Hair Pin Cotter3290-307
5Washer-Flat3956-24
6Link-Adjusting H.O.C.88-5570
7Hair Pin Cotter3290-307
8Washer-Hardened80-6990
10Link-H.O.C.93-3888
11Bolt-Shoulder7-0030
12Rod-Hanger Rear88-5450
13Trunnion-H.O.C. Rear88-4230
14MUTTER3296-29
15MUTTER3296-29
16Clamp-H.O.C. Pivot88-4730
17Spring-Extension93-3808
18Bolt-Shoulder7-0030
19Capscrew322-3
20MUTTER3296-29
21MUTTER3296-29
22Pivot-H.O.C.93-7660
23Spacer65-7210
24Knob-Control94-5565
25Nut3218-2
