> Roth / TORO > Ride-On Mowers > Traktor > 16-44 HXL > 393/71218 > 6900001 > Frame Assy.

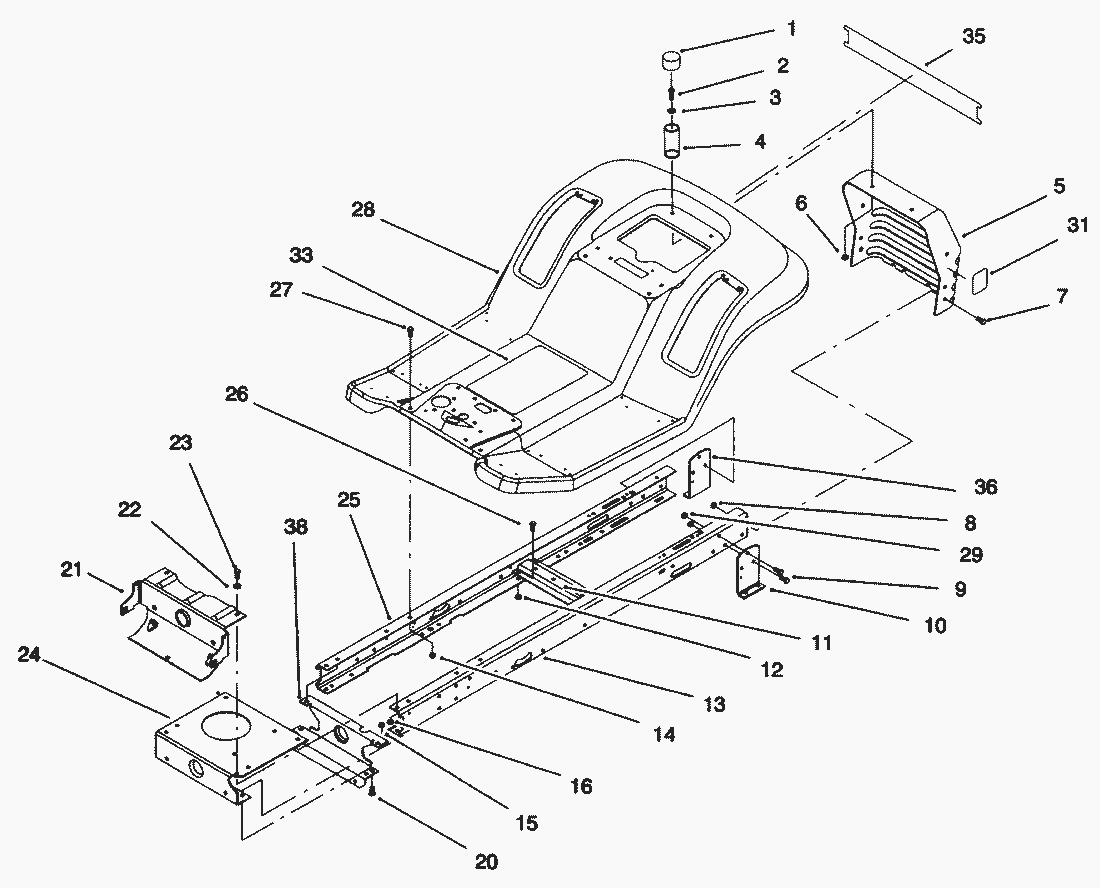

Lista de repuestos para Toro Roth / TORO Frame Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Cap-Protector701178
2Hex Hd. Capscrew322-5
3Washer3256-23
4Spring-Compression88-6220
5Panel-Rear Hitch88-3940
6MUTTER3296-29
7Capscrew322-3
8MUTTER3296-29
9Capscrew322-3
10Bracket-Trans. Mtg. L.H.93-3857
11Bracket-Idler Pivot88-4620
12MUTTER3296-29
13Frame-Rail L.H.94-1999
14MUTTER3296-29
15MUTTER3296-29
16MUTTER3296-29
20Capscrew322-3
21Support-Front Axle93-3834
22Washer3256-23
23Capscrew322-3
24Plate-Engine Mount88-4630
25Frame-Rail R.H.94-1998
26Capscrew322-3
27Capscrew322-3
28Body-Rear88-3840
29MUTTER3296-29
31Decal-Dump Valve Hydro93-6678
33Decal-Instruction Hydro (Model No. 71213 Only)93-6676
35Decal-Rear Body 164494-3530
36Bracket-Trans. Mtg. R.H.93-3856
38Support-Rear93-3831
