> Roth / TORO > Ride-On Mowers > Traktor > 16-44 HXL > 393/71218 > 6900001 > Engine B&S Model 28Q777-0668-A1

Lista de repuestos para Toro Roth / TORO Engine B&S Model 28Q777-0668-A1

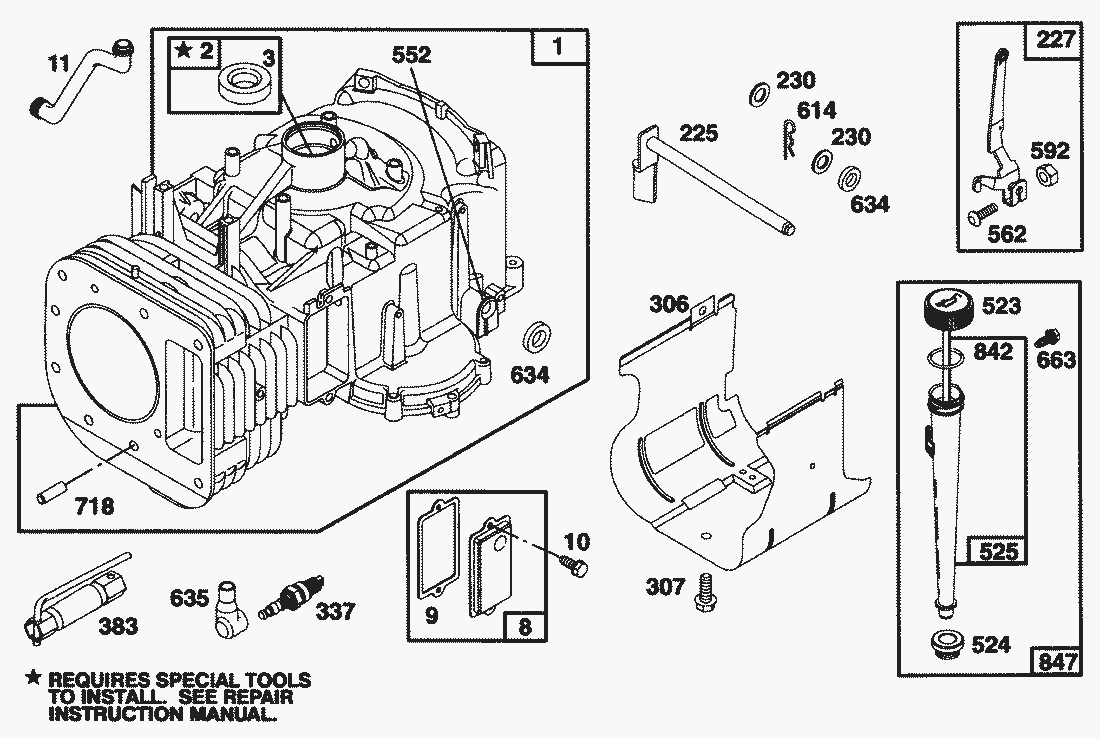

Lista de repuestos


pos.descripciónNúmero de pieza
1Cylinder Assembly496412
2Bearing-Cylinder Note: Installation Requires Special Tools399265
3Seal-Oil391086
8Breather Assembly495735
9Gasket-Valve Cover27803
10Screw94621
11Tube-Breather281246
225Crank-Governor495157
227Lever Assy.-Governor493935
230Washer-Gov.Crank94742
306Shield-Cylinder225020
307Screw-Cylinder Shield Mtg. Sem94623
332Nut-Hex.94314
337Plug-Spark491055
383Wrench-Spark Plug89838
523Cap and Dipstick Oil Filler495230
524Seal-Fill Tube66838
525Tube-Oil Filler496113
552Bushing-Gov. Crank231597
562Bolt, Governor Lever92613
592Nut-Hex.-10-24231082
614Cotter, Hair Pin93306
634Seal-Oil491323
635Elbow-Spark Plug280872
663Screw-Sem94073
718Pin-Cylinder230192
842Seal-Oil Filler Cap270920
847Fill Group-Oil496415
