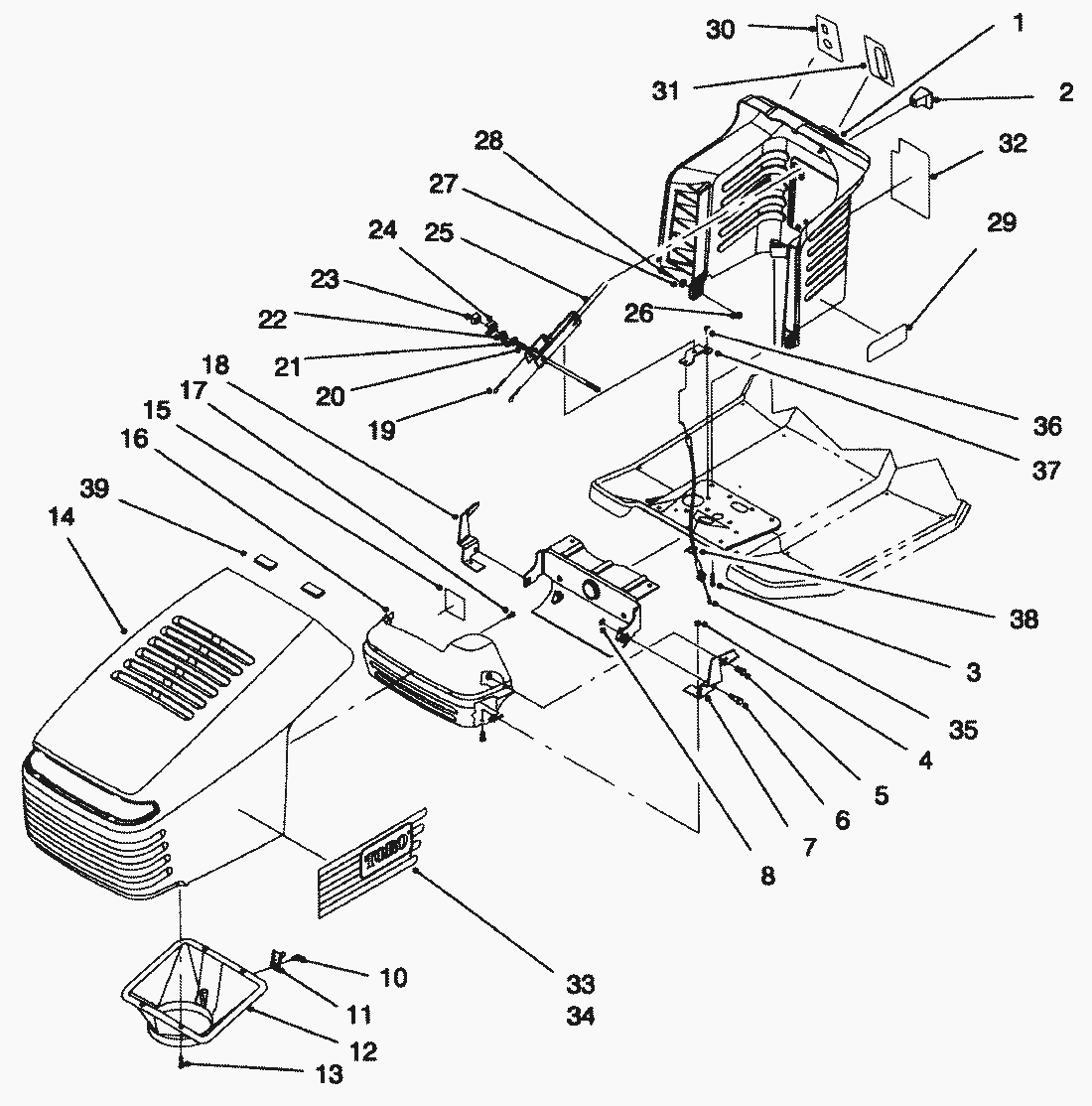

Lista de repuestos para Toro Roth / TORO Hood Assy.

pos.	descripción	Número de pieza
1	Tower-Steering	93-0303
2	Knob-Control	94-5565
3	Screw-Handle	46-8091
4	MUTTER	3296-42
5	Capscrew	321-2
6	Bolt-Shoulder	28-0540
7	Bracket-Hood Pivot L.H.	88-6050
8	Nut-Retained	3290-496
10	Screw-Handle	46-8091
11	Pin-Latch	94-1984
12	Duct-Hood Air	93-3891
13	Screw-Self Tapping	46-8090
14	Hood	92-8650
15	Patch-Heat Tape	92-5782
16	Shield-Heat	93-3864
17	Screw-Self Tapping	46-8090
18	Bracket-Hood Pivot R.H.	88-6040
19	Hair Pin Cotter	3290-307
20	Rod-Tower Pivot	88-4170
21	Flat Washer	3256-24
22	Nut-Flange	32128-43
23	Nut-Wedge	88-4140
24	Clamp-Pivot Rod	88-4160
25	Lever-Deck Engage	88-5190
26	MUTTER	3296-29
27	Washer	3256-23
28	Capscrew	322-3
29	Decal-Tower 1544HXL	94-3528
30	Decal-Ignition/Lights (Model No. 71202)	92-5731
31	Decal-Throttle (Model No. 71200	92-5730
32	Decal-Deck Engage(Model No. 71200)	93-6673
33	Decal-Hood L.H.	92-2468
34	Decal-Hood R.H.	92-2467
35	Cable-Deck Engage	94-4292
36	Screw Thread Forming	32144-4
37	Bracket-Cable Upper	93-3849
38	Tie Strap	614249
39	Foam-Hood	94-1980
