> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 200000001 > Upper Hydro Lift Assy.

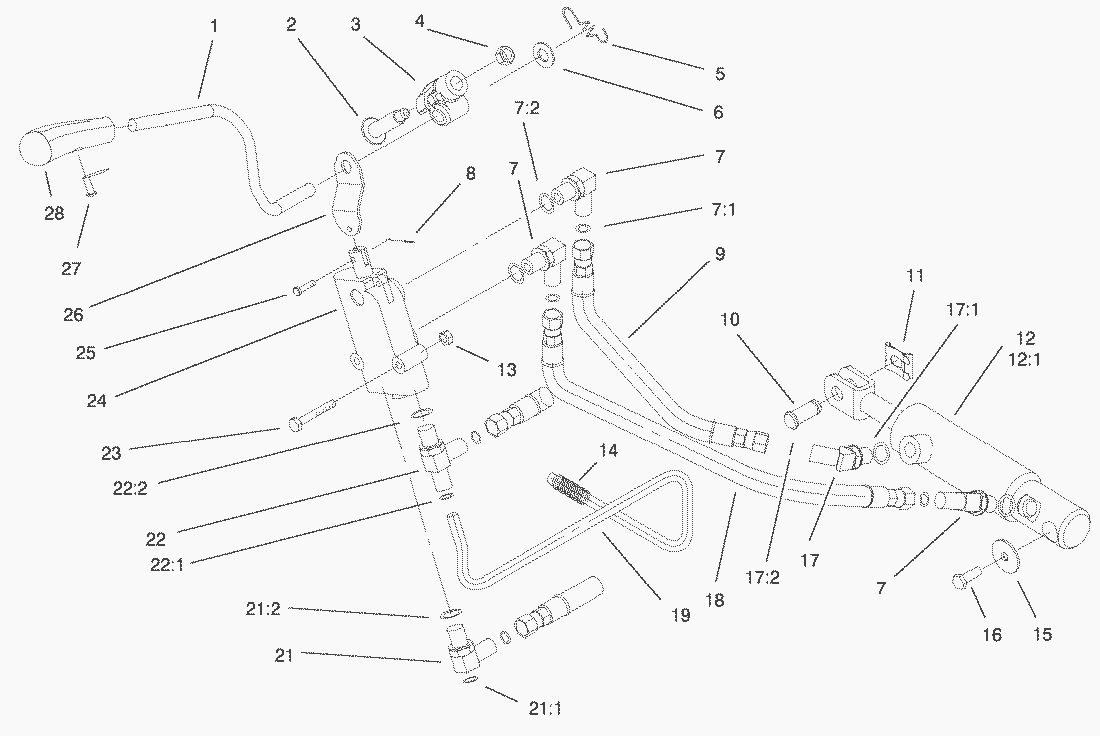

Lista de repuestos para Toro Roth / TORO Upper Hydro Lift Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Handle-Lift94-7714
2Bolt-Shoulder92-1099
3Trunnion-Lift Lever95-4168
4Nut-Lock610358
5Spring-Ext. Lift95-4221
6Washer95-4235
7Fitting-Hydraulic 90 DEG95-4141
71O-Ring237-21
72O-Ring237-42
8Pin-Cotter3272-1
9Hose ASM94-7945
10Pin-Clevis98-1639
11Clip-Pin95-4064
12Lift Cylinder ASM94-2300
121Seal Kit95-4007
13MUTTER3296-42
14Cover-Brace95-4258
15Washer-Flat3256-57
16Screw-Thread Locking95-4245
17Fitting-Hydraulic 45 DEG95-4136
171O-Ring237-42
172O-Ring237-21
18Hose ASM94-7944
19Tube-Hydraulic94-7970
21Fitting-Hydraulic 90 DEG.95-4140
211O-Ring237-22
212O-Ring237-42
22Fitting-Hydraulic Tee95-4134
221O-Ring237-22
222O-Ring237-42
23Capscrew321-10
24Valve-Hydraulic95-4019
25Clevis Pin283-16
26Link-Lift98-1620
27Tscrew-PPH95-4236
28Knob-Lift (Only On: 73470, 73540)94-2100
28Knob-Lift (Only On: 73541)95-4106
