Hi-Lo Shift Assy.

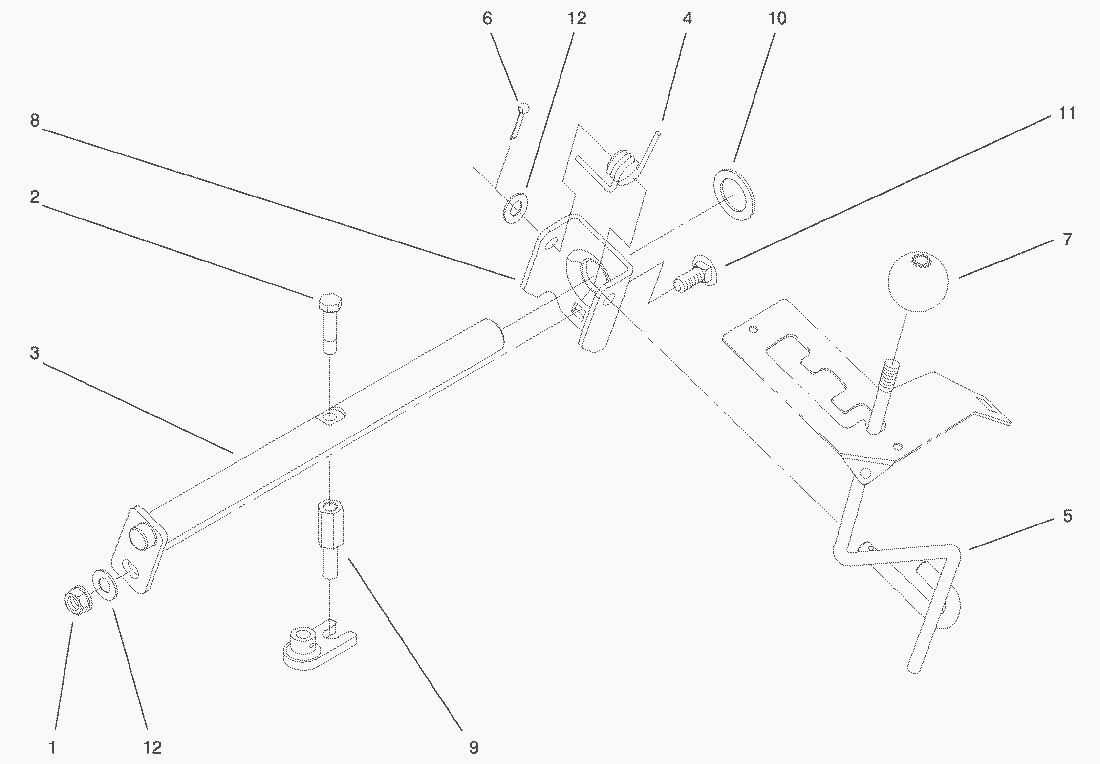

Lista de repuestos para Toro Roth / TORO Hi-Lo Shift Assy.
pos.
descripción
Número de pieza
1
Locknut
3296-39
2
Screw-Thread Locking
99-4953
3
Shift Rod ASM-Welded
99-4445
4
Spring-Torsion
99-4446
5
Lever-Shift W.a.
99-4448
6
Pin-Cotter
3272-10
7
Knob-Hi Lo Shift
95-4022
8
Bracket-Pivot
99-4951
9
Rod-Shift Pivot
99-4952
10
Spacer-Shift
99-4958
11
Carriage Bolt
3231-22
12
Flat Washer
3256-24
