> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 200000001 > Liquid Cooled GAS Engine Assy.

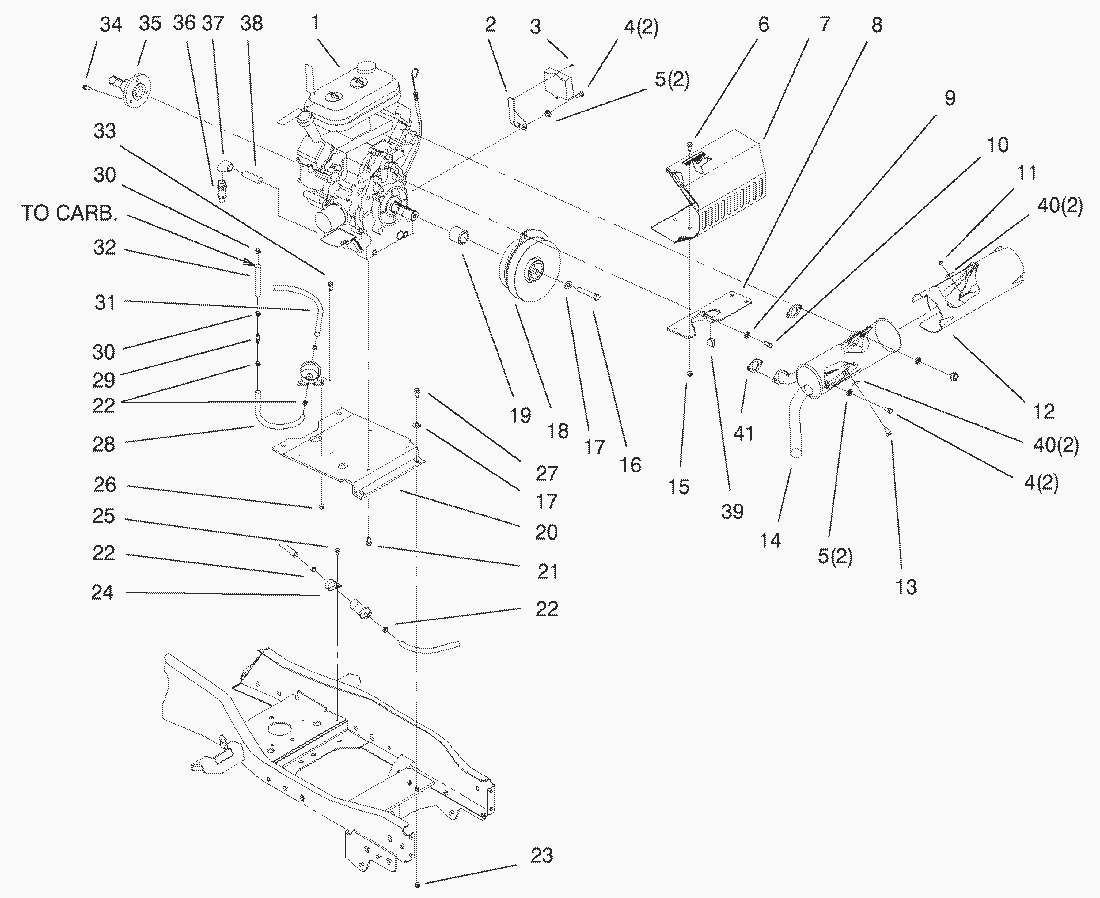

Lista de repuestos para Toro Roth / TORO Liquid Cooled GAS Engine Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Engine Service ASM98-8063
2Bracket-Kawasaki Module95-4063-03
3Screw Thread Forming32144-4
4Screw-HH33114-016
5Lockwasher3253-4
6Capscrew322-3
7Shroud-Muffler94-7523-03
8Support-Muffler94-7631-03
9Washer-Lock (Only On: 72042, 72062)3253-5
10Capscrew323-6
11Lock Nut32152-4
12Reflector-Heat95-3990
13SCHRAUBE321-3
14Muffler-Kawaski94-7557
15Nut32153-3
16Screw-Cap94-7974
17Flat Washer3256-24
18Clutch-PTO94-2190
19Spacer-Clutch94-2068
20Plate-Engine94-7848-03
21Screw-Threadlocking95-4184
22Clamp-Hose95-4271
23Locknut3296-39
24Clamp2412-104
25Self Tapping Screw32144-70
26Locknut3296-8
27Screw-Cap Hex Hd.323-7
28Hose-Fuel (Service)99-9684
29Fitting-Barbed Adapter95-4061
30Clamp-Hose2412-98
31Hose-Fuel (Service)99-9685
32Hose-Fuel (Service)99-9686
33Capscrew321-5
34Screw-Threadlocking95-4232
35Hub-Drive94-2066
36Valve-Oil Drain (Only On: 72103, 72083)92-6877
37Elbow-90<12>2811-16
38Nipple-Pipe289-51
39Bumper98-5023
40Washer3256-22
41Gasket95-9953
