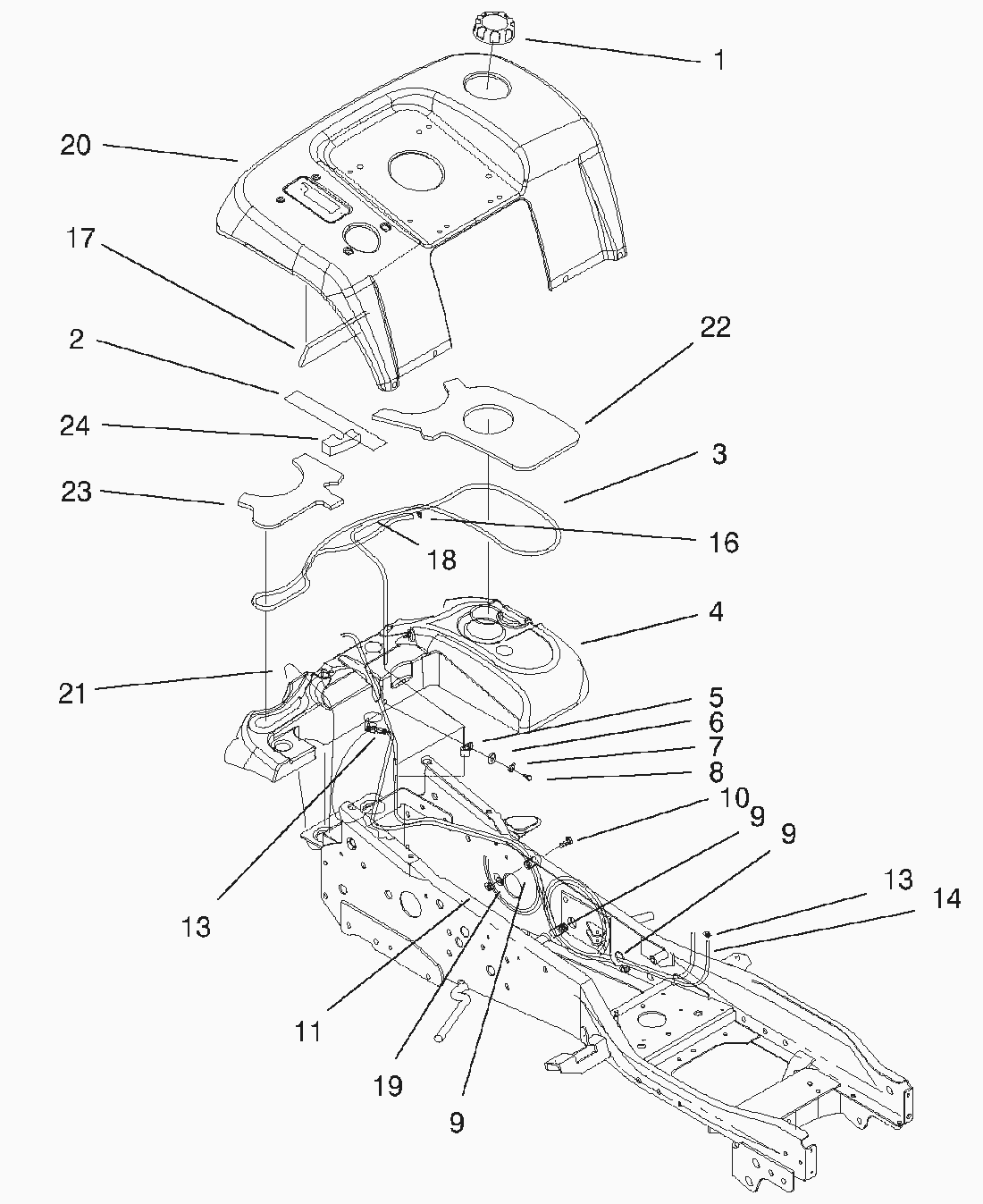

Lista de repuestos para Toro Roth / TORO Fender & Fuel System Assy.

pos.	descripción	Número de pieza
1	Gas Cap ASM-Unleaded	95-4192
2	Tape-3m	95-4270
3	Hose-Vent (Service)	99-8553
4	Tank-Gas Assy. (Service)	99-6141
5	R-Clamp	2412-94
6	Washer	3256-22
7	Lockwasher	3253-3
8	SCHRAUBE	321-3
9	Clamp-Tube	98-1616
10	Capscrew	323-6
11	Locknut	3296-39
13	Clamp-Hose	95-4271
14	Hose-Fuel (Service)	99-9681
16	Clamp-Hose	94-8189
17	Foam-Tank Center	95-4157
18	Tie Strap	614249
19	Flat Washer	3256-24
20	Rear Body ASM	98-7208
21	Tie-Cable	99-5901
22	Foam-Tank	99-6145
23	Foam-Tank	99-6146
24	Foam-Tank Top	99-6887
