> Roth / TORO > Ride-On Mowers > Traktor > 520 Lxi > 521/73580 > 200000001 > Carburetor Assy.

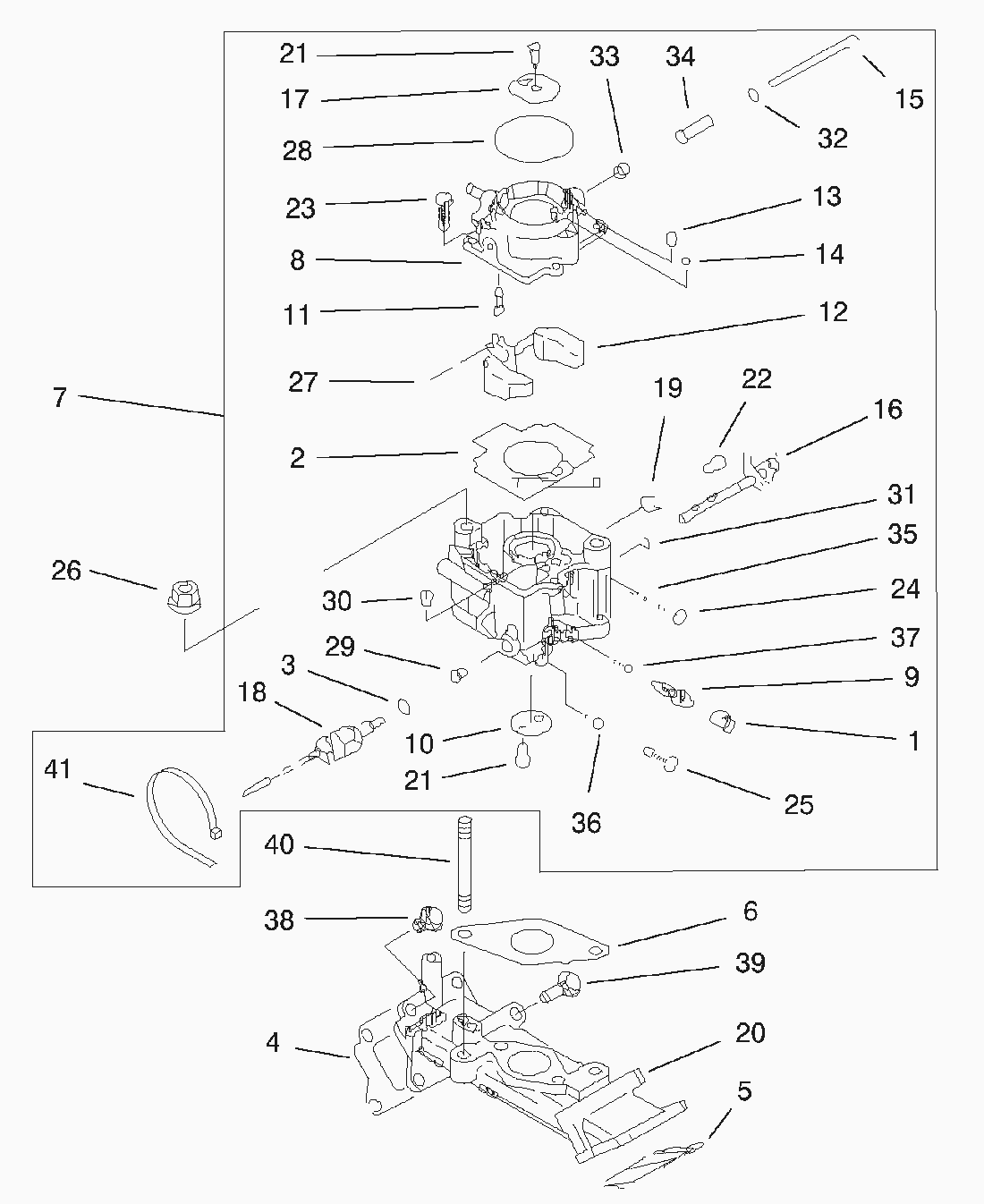

Lista de repuestos para Toro Roth / TORO Carburetor Assy.




Lista de repuestos


pos.descripciónNúmero de pieza
1Cap95-9857
2Gasket95-9858
3Gasket95-9859
4Gasket95-9860
5Gasket95-9861
6Gasket95-9862
7Carburetor ASM98-7366
8Cap-Chamber95-9864
9Screw-Pilotair95-9865
10Valve-Throttle95-9866
11Valve-Float95-9867
12Float95-9868
13Jet-Air95-9869
14Jet-Air95-9870
15Shaft-Carburetor95-9871
16Shaft-Carb.98-7367
17Valve95-9873
18Solenoid95-9874
19Stopper95-9875
20Manifold-Intake95-9876
21Screw95-9877
22Screw95-9878
23Screw95-9879
24Screw95-9880
25Screw95-9881
26NutKw10621
27Pin95-9883
28O-Ring95-9972
29Jet-Main95-9884
30Jet-Pilot95-9885
31Seal95-9886
32Plate-RH Iso95-3887
33Collar95-9888
34Collar95-9889
35Spring95-9890
36Spring95-9891
37Spring95-9892
38Bolt-Flanged95-9893
39Bolt-Flanged95-9894
40Bolt-Stud95-9895
41Clamp98-7368
