volver a
>
Roth / TORO
>
Ride-On Mowers
>
Traktor
>
520 Lxi
>
521/73580
>
210000001
>

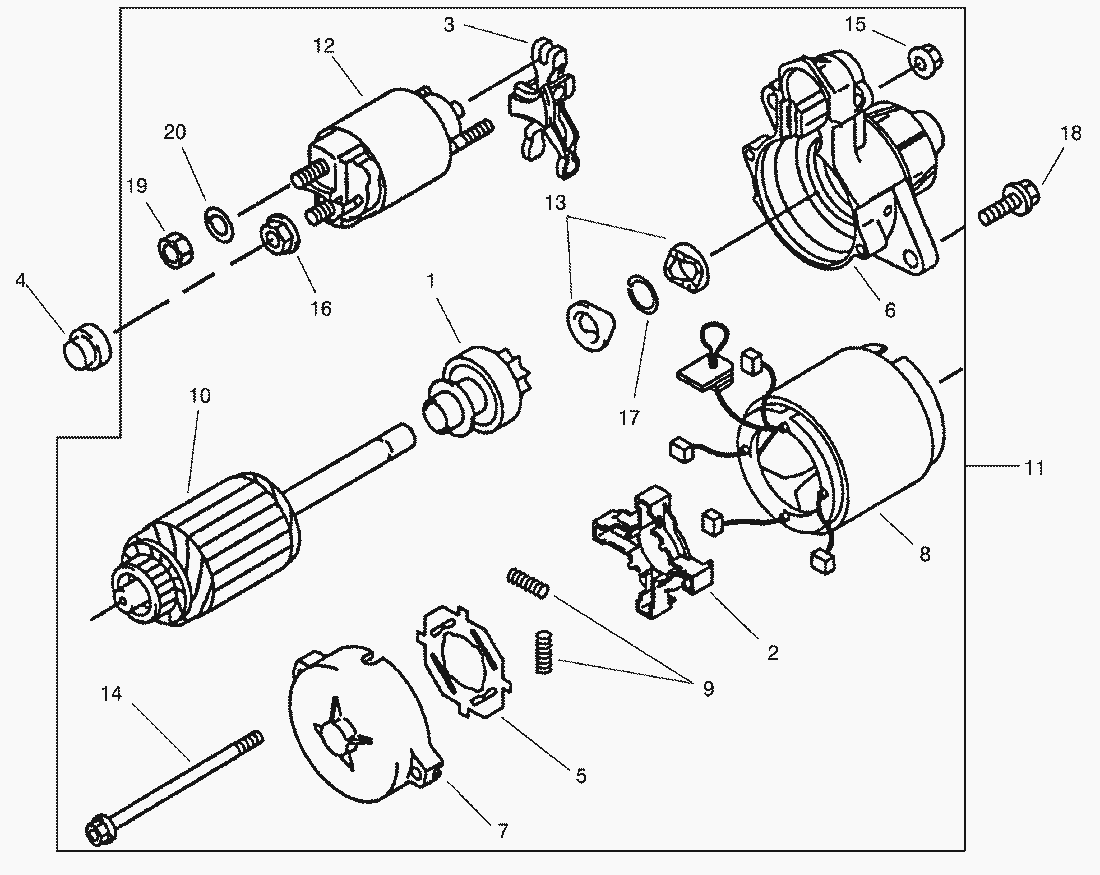

Starter Assy.
Lista de repuestos para Toro Roth / TORO Starter Assy.
pos.
descripción
Número de pieza
1
Clutch ASM
95-9961
2
Holder-Brush
KW10048
3
Lever-Shift
KW10051
4
Cover
95-9963
5
Insulator
KW10073
6
Cover-ASM
95-9964
7
Cover-ASM
95-9965
8
Brush
KW10081
9
Spring-Brush
KW10082
10
Armature
KW10084
11
Starter-Electric
95-9966
12
Switch Assy
KW10098
13
Stopper
95-9967
14
Bolt
KW10190
15
Nut
KW10197
16
Nut
KW10198
17
Ring-Snap
KW10219
18
Bolt, Flanged 8x30
KW10031
19
Nut-Hex-Small
95-9968
20
Washer-Spring 8mm
KW10143
